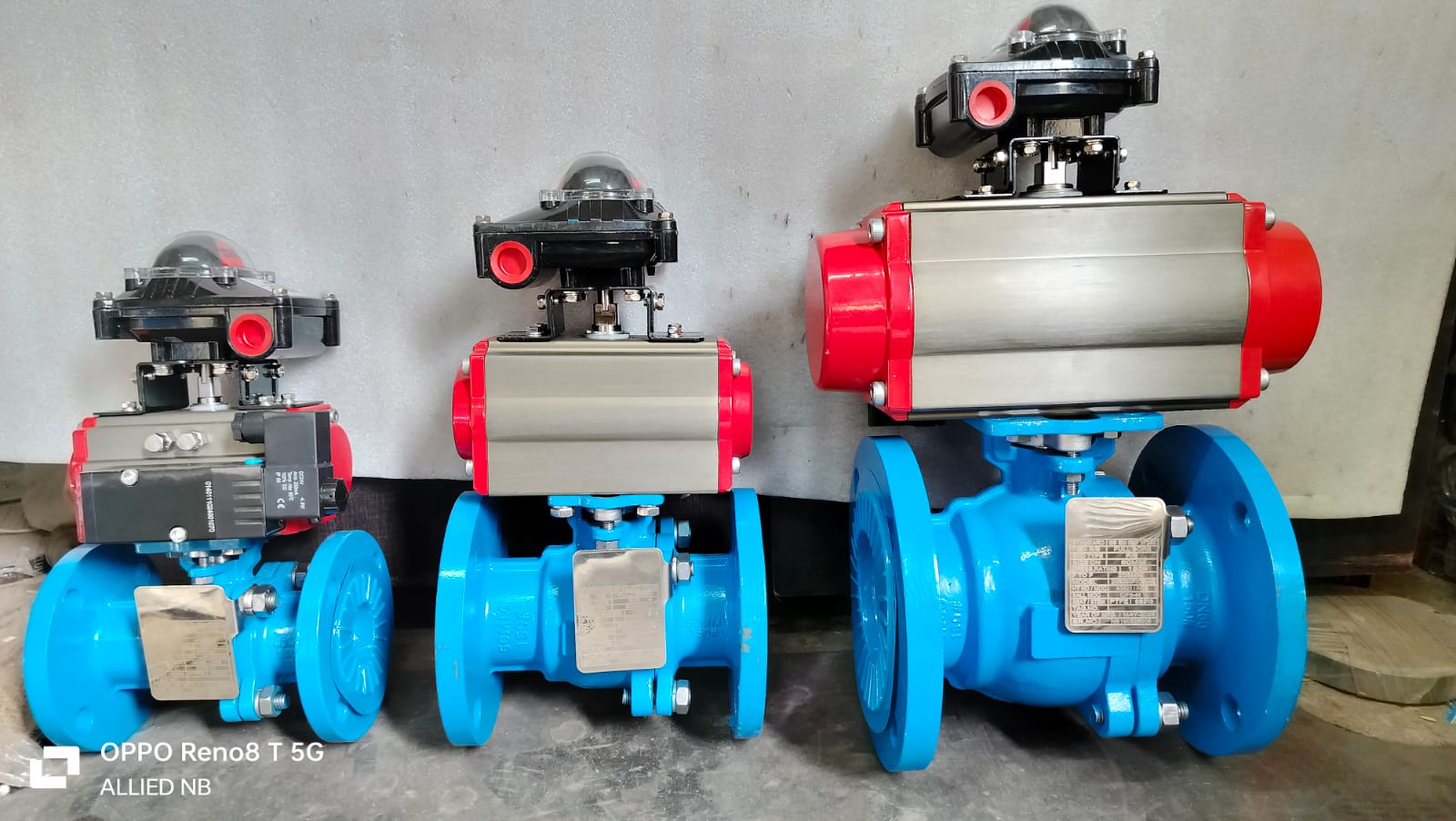

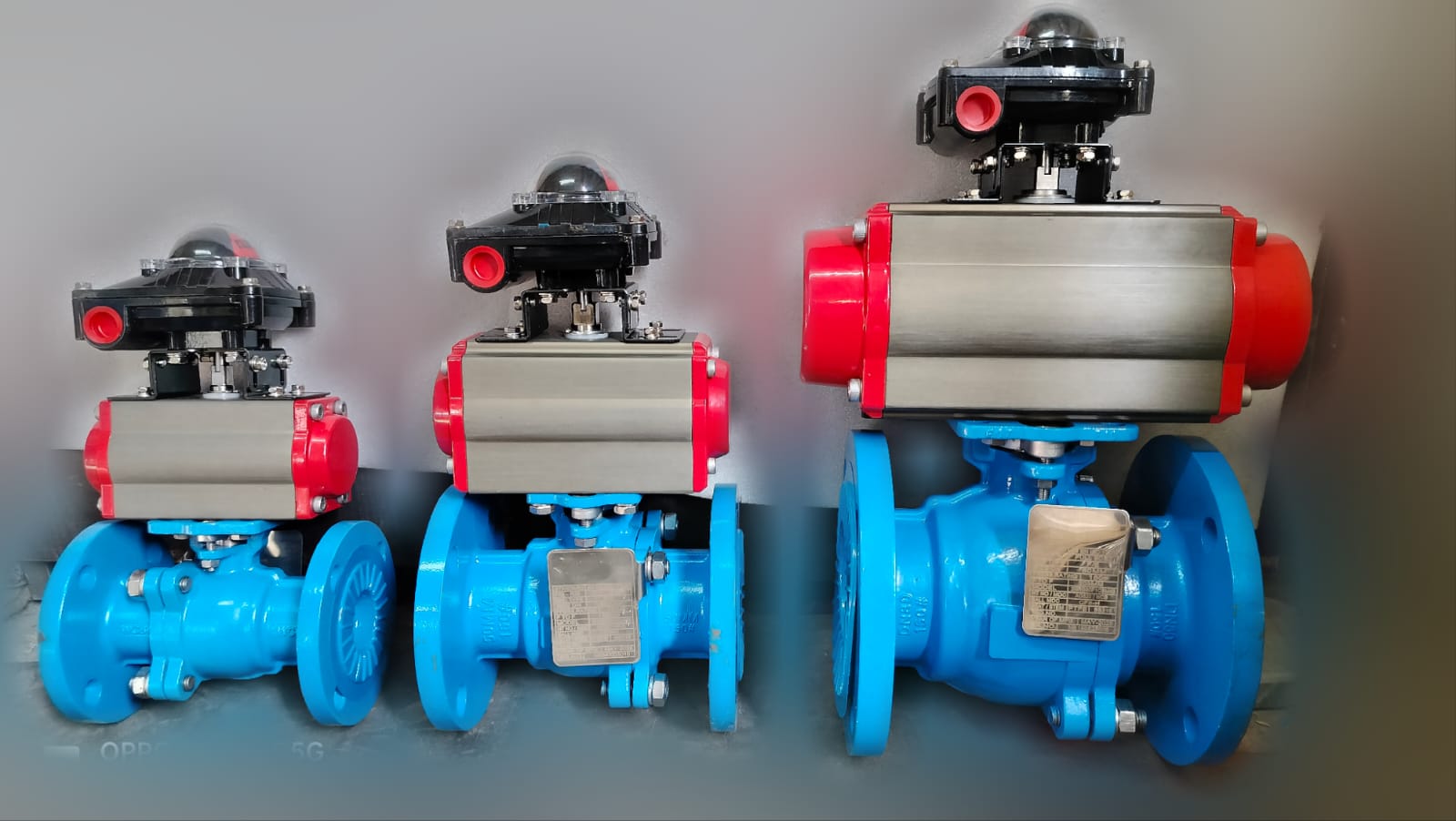

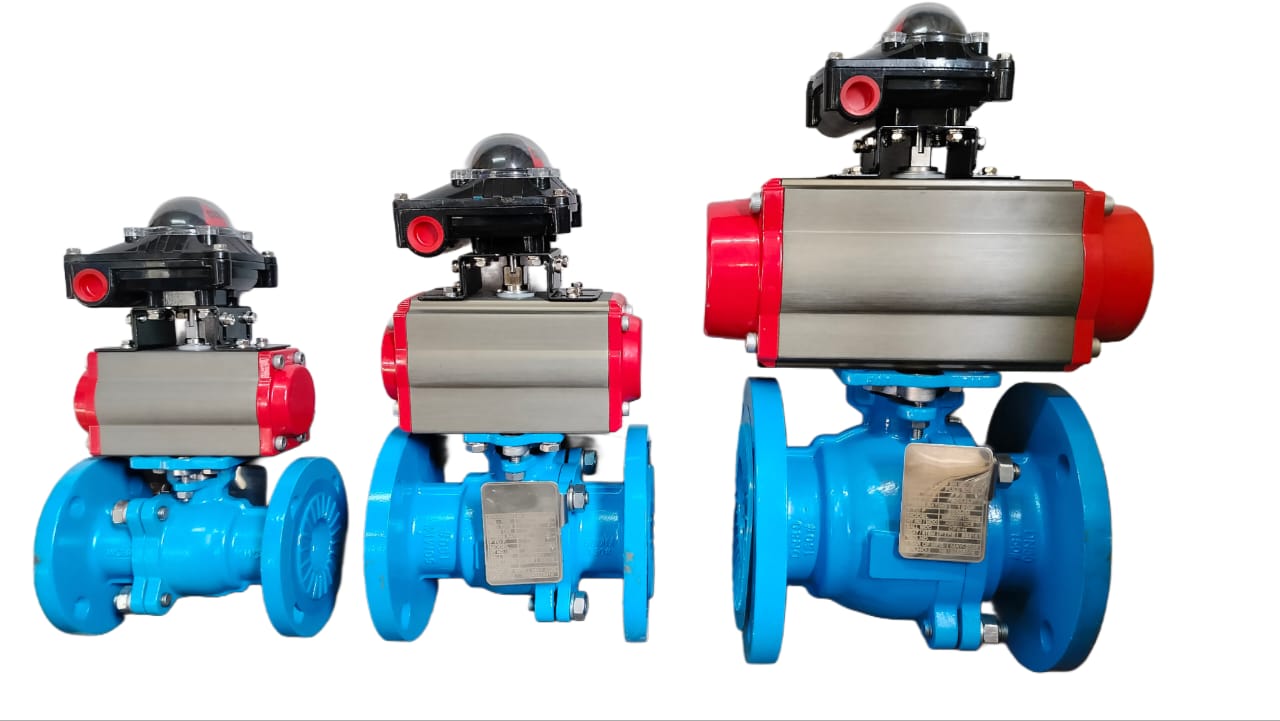

Pneumatic Actuated 3 Piece Design Ball Valve
Product Catalogue
Allied Industrial Valve’s Three piece design Ball valves can be operated by the pneumatic actuator, on-off type, with limit switch / with solenoid valves as per customer requirements. Ball Valves are available made from bar stocks sand cast, investment casting in various materials, like SS 304, SS 304L, SS 316, SS 316L, IC CF8, IC CF8M, IC CF3, and ICCF3M. Sizes -1/4″ to 6″(6 NB TO 150 NB). We manufacture valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, and Mill TC 3.1.b available with all supplies. Also, we can provide valves with third-party inspection agencies.
Description
| Allied THREE PC DESIGN BALL VALVE Flanged END | |
|---|---|
| BODY : | BAR STOCKS STAINLESS STEELS AND INVESTMENT CASTING IC CF8- 304/IC CF8M -SS 316 /IC CF3- SS 304L/IC CF3M- SS 316L |
| BALL : | AISI 304/SS 316 / SS 304L/SS 316L |
| STEM: | AISI 304/SS 316 / SS 304L/SS 316L |
| SEAT&SEAL : | PTFE /RPTFE/GLASS FILLED PTFE/CFT |
| MFG STD : | GENERALLY CONFORMING TO BS 5351,API 602 |
| TESTING : | BS 6755 |
| LEVER : | S.S. WITH PVC SLEEVE |
| ENDS : | SCREWED TO BSP –F , NPT –F , MALE-FEMALE |
| HYD TEST PRESSURE: | BODY:425 PSIG(30KG/CM2) SEAT:300 PSIG (21 KG/CM2) |
| SIZE RANGE : | 6 NB TO 100 NB (1/4″ TO 4″ ) |
