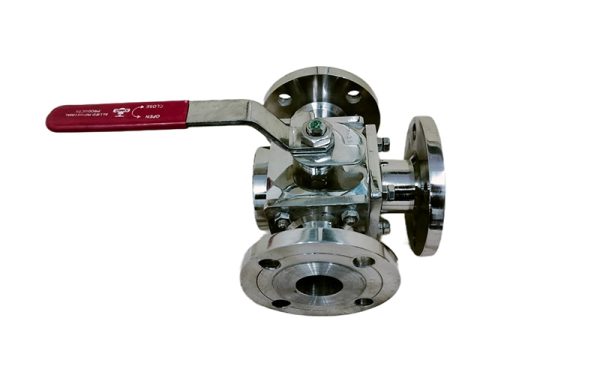

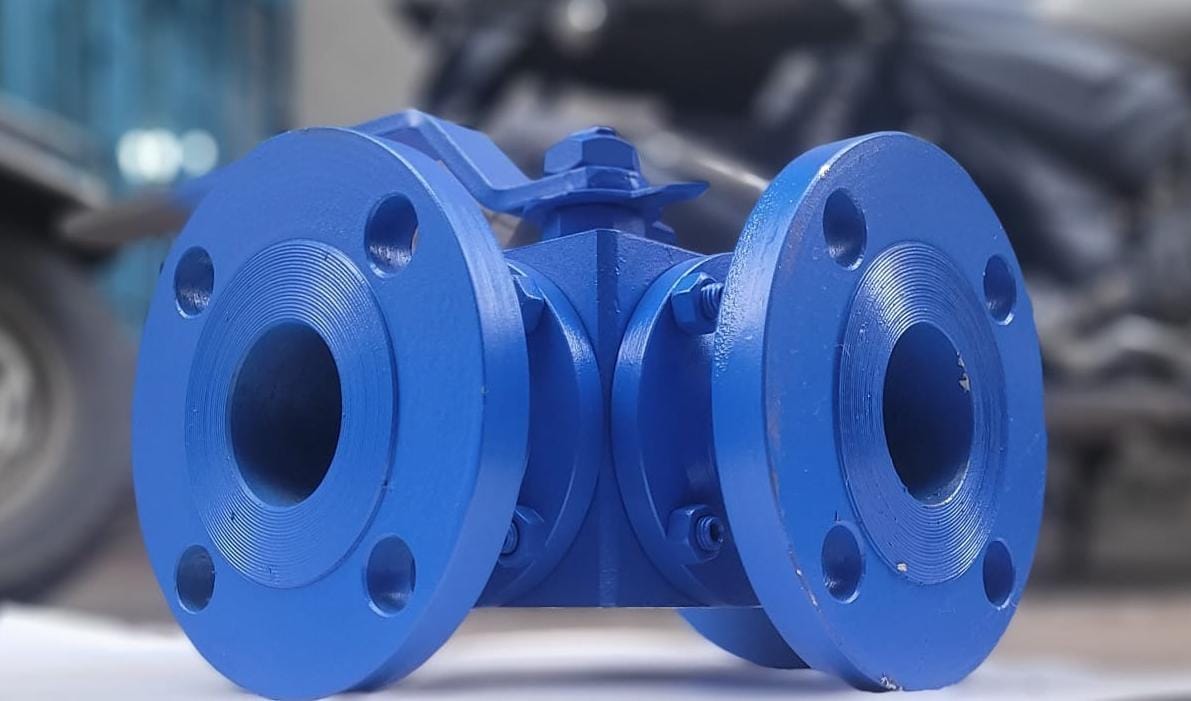

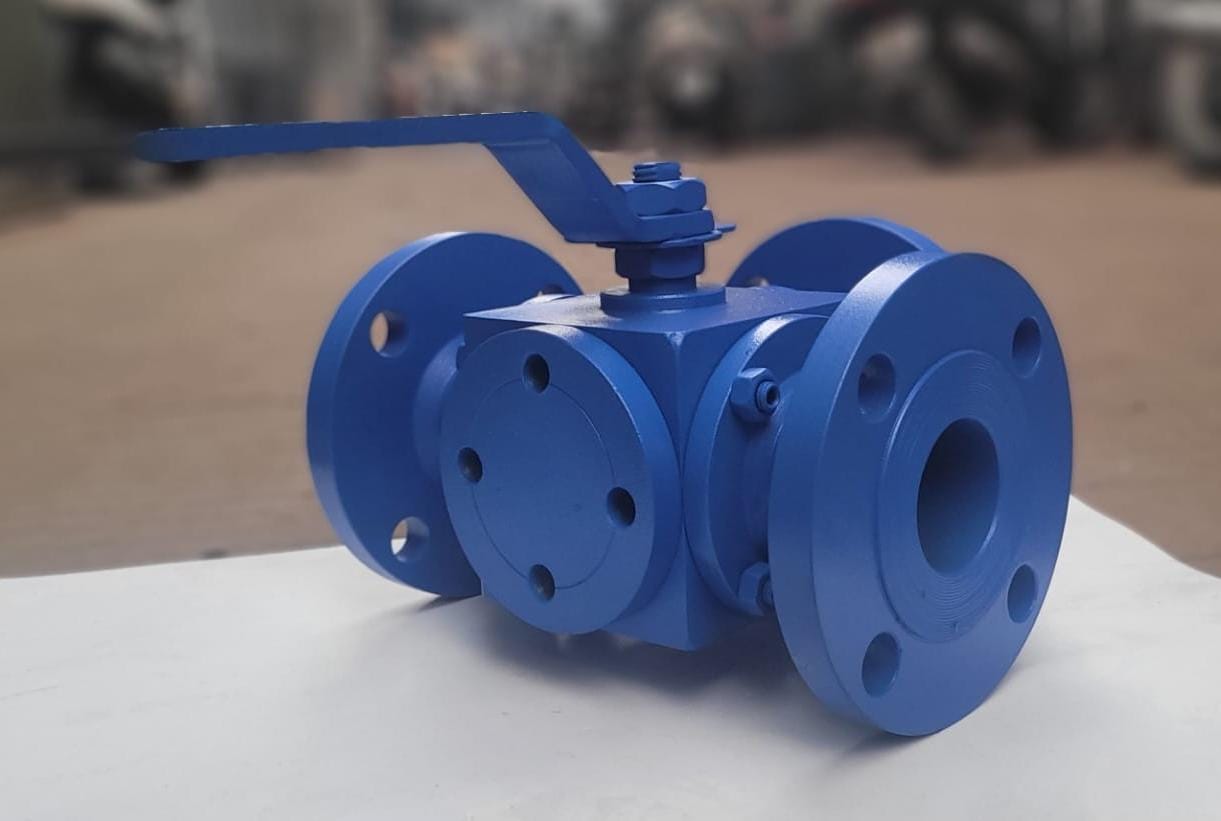

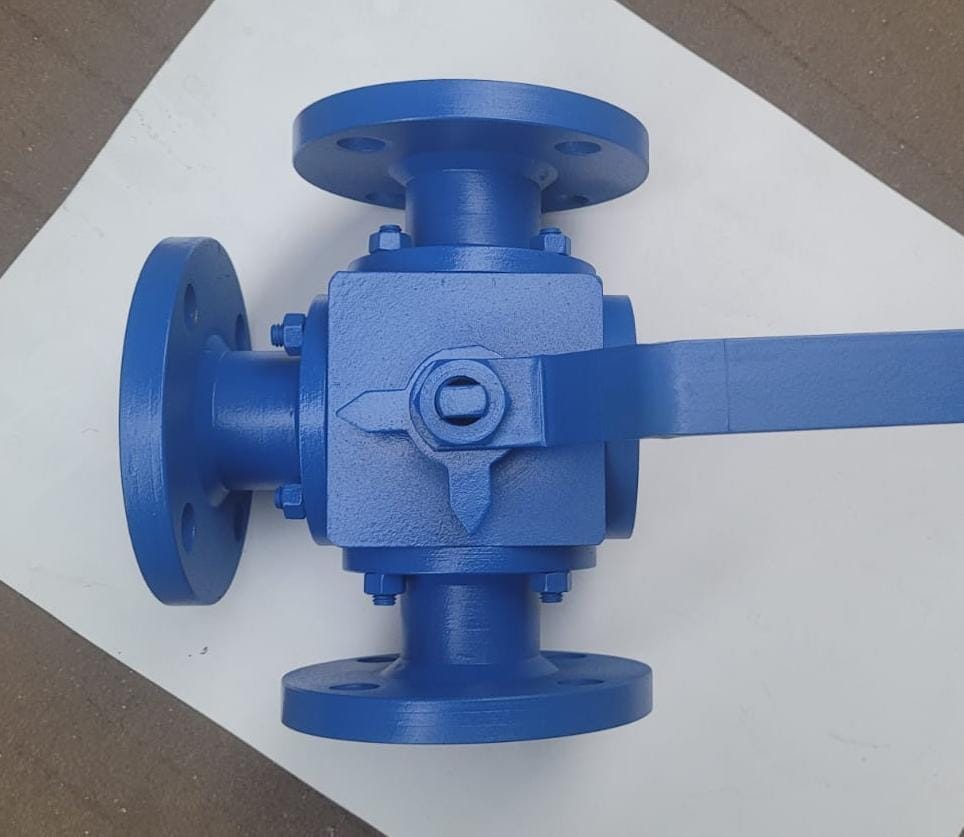

3 Way Ball Valve
Allied Industrial Valve offers 3 Way Ball valves in L-port, T-port, and LL-port designs. These valves are specifically designed for flow control of line fluid. The L-shape (90-degree) valves control the flow of the line fluid, the LL-shape valves divert the flow lines of media, and the T-shaped valves provide additional line flow control at 90 degrees. The internals of our valves are made of Stainless Steel –304 & 316 Grades, chosen according to the specific applications of the valves. This allows our valves to be used in highly corrosive applications and with toxic media.
Our valves are available with various end connections, including socket weld, screwed, butt weld, and flanged. We also manufacture 3-piece design Ball valves made from Forged C.S.A-105 and all 2-way valves.
The valves are manufactured using a range of materials, including Cast Iron (C.I.), Carbon Steel (C.S.), Mild Steel (M.S.), and Forged Carbon steel. We also use Stainless Steel (S.S.)-304, S.S.-316, Hast Alloy-20, and Bronze.
At Allied Industrial Valve, we prioritize the use of genuine guaranteed raw materials and provide material test certificates, hydraulic test certificates, and Mill TC 3.1.b with all supplies. We are also capable of offering valves with third-party inspection agencies.
|Allied’s THREE WAY BALL VALVE FLANGED END -ASA 150# BLOW–OUT PROOF SETM, FLOATING BALL FUL/REDUCE PORT|
|BODY :||CS ASTMA 216 GR WCB \ASTM A 351
GR,CF8\CF8M/CF3/CF3M/GUN METAL /BRASS/ALUMINIUM
|BALL :||AISI 304/ASTM A 351 GR CF 8M/CF3/CF3M/GM|
|STEM:||AISI 304/AISI 316|
|SEAT&SEAL :||PTFE /RPTFE/GLASS FILLED PTFE/CFT|
|MFG STD :||GENERALLY CONFORMING BS 5351|
|TESTING :||BS 6755(PART-11)|
|LEVER :||LEVER MS WITH ZINC PLATED/SS WITH PVC SLEEVE / GEAR
OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR
|ENDS :||FLANGED END ASA 150#|
|HYD TEST PRESSURE:||BODY:425 PSIG(30KG/CM2)
SEAT:300 PSIG (21 KG/CM2)
|SIZE RANGE :||6 NB TO 200 NB(1/4″ TO 8″)|
