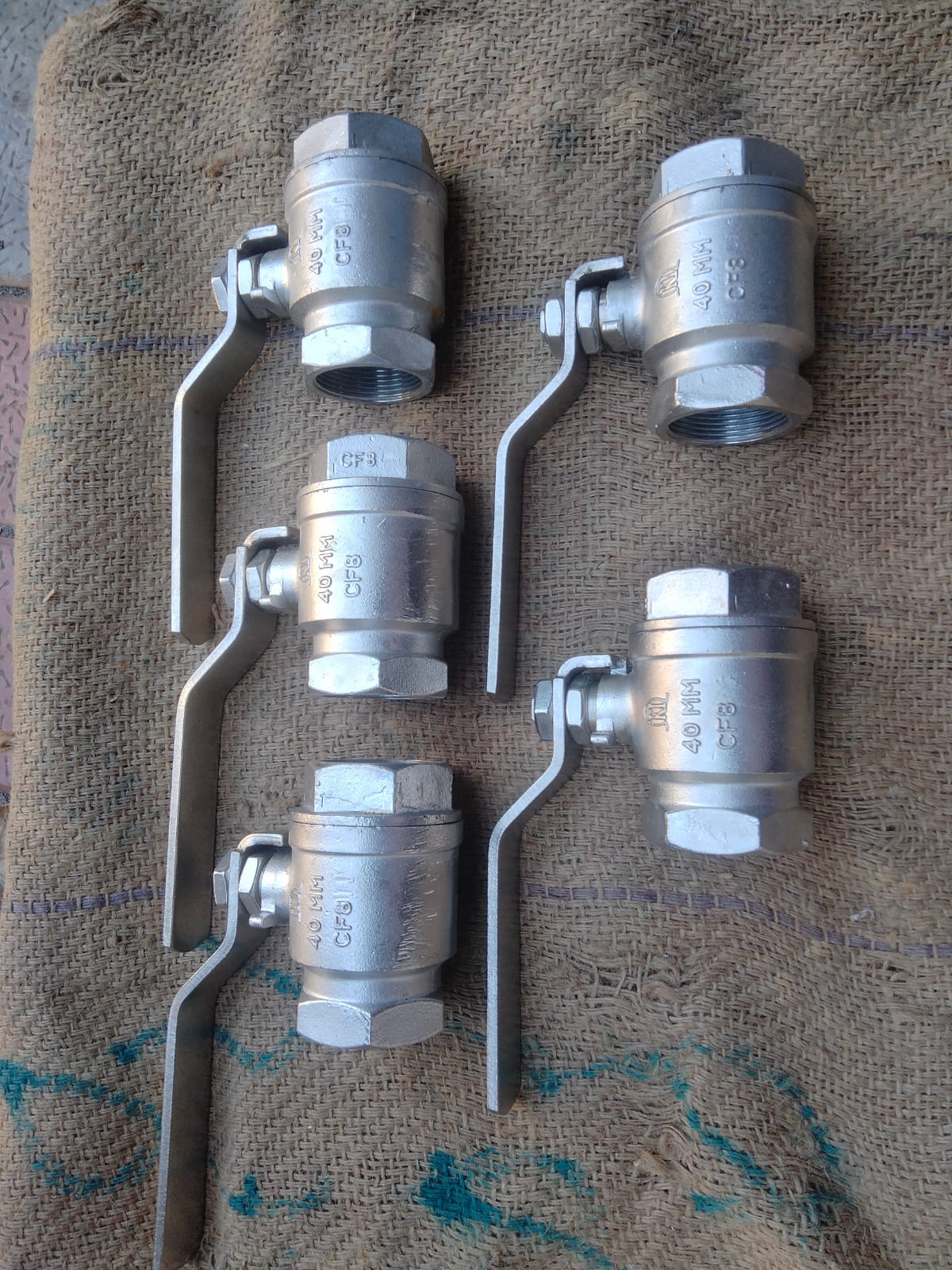

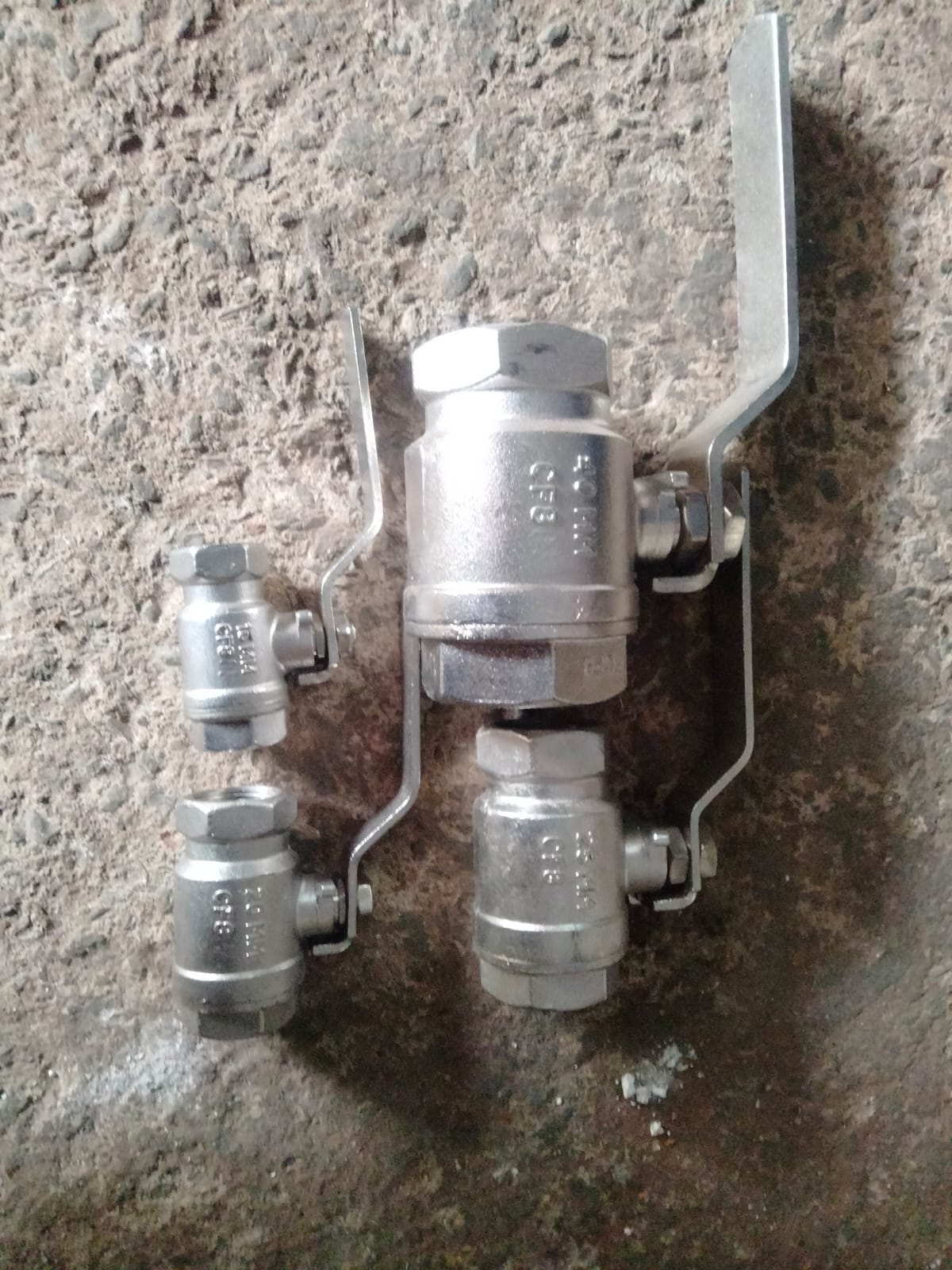

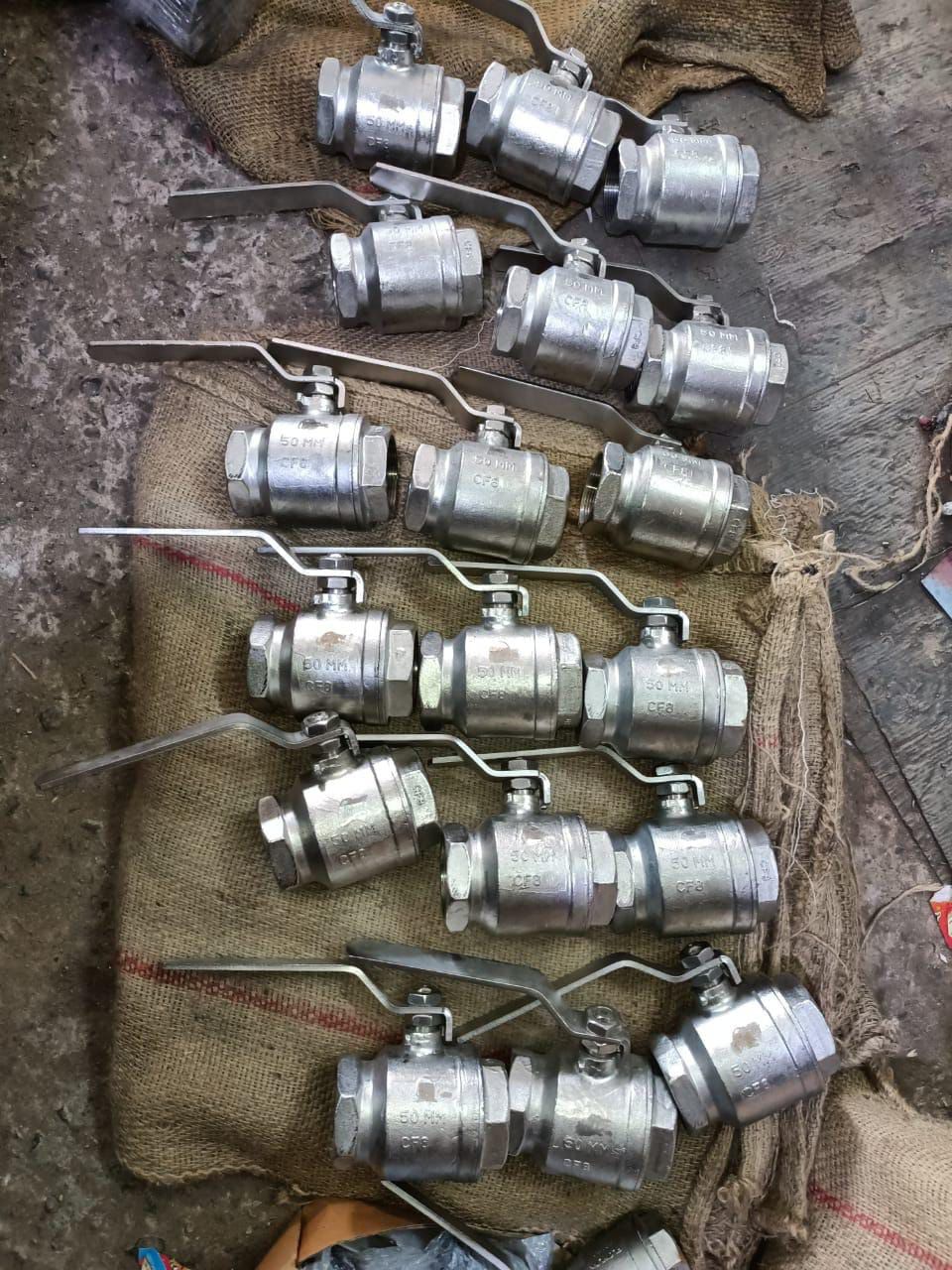

Single Piece Ball Valve Screwed End
Product Catalogue
Allied Industrial Product’s Single piece design Ball valves are the right ball valve for just about every conceivable application. They are available made from bar stocks sand casted , investment casting in various materials, likes SS 304,SS 304 ,SS 316 ,SS 316L , IC CF8, IC CF8M, IC. Allied Single Piece available Sizes 15 MM TO 300 MM.
Description
| PART | MATERIAL |
|---|---|
| BODY | CAST IRON | CAST STEEL | SS 304 | SS 316 | SS 316L |
| BALL | AISI 410 | AISI 304 | AISI 316 | SS 304L | SS 316L |
| STEM | SS 410 | SS 304 | SS 316 | SS 304L | SS 316L |
| SEAT & SEAL | PTFE | RPTFE | GFT | TEFLON | VITON | METAL TO METAL |
| MFG STD | BS 5351 |
| TEST STD | BS 6755 |
| END CONNECTION | SCREWED END TO BSP, NPT (F) | SOCKETWELD END |
| HYD TEST PRESSURE | BODY: 425 PSIG (30 KG/CM2) |
| SEAT: 300 PSIG (21 KG/CM2) | |
| OPERATION | OPERATION |
| TYPE | SINGLE PIECE |
| SIZE RANGE | 15 MM TO 300 MM |
