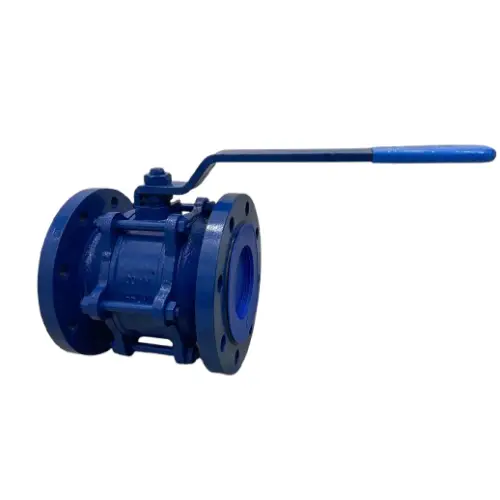

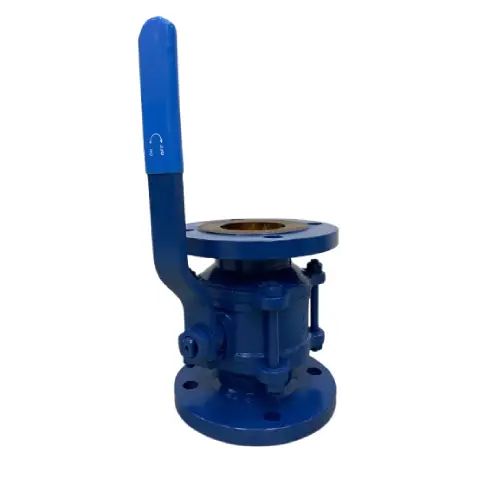

3 Piece Ball Valve Flanged End
Product Catalogue
Allied Valves India SS THREE PIECE BALL VALVES can quickly and simply be fitted with a pneumatic, electric, or hydraulic drive, even when they are operating. The wide range includes the right ball valve for just about every conceivable application. They are available in various materials, like CS, SS, Gun Metal, Aluminum, etc.
Material of Valve: AISI 304 (CF 8), AISI-316(CF 8 M), AISI 316 L (A 351 CF 3 & CF3M ), LCB, WC 9, WC 6, Hast Alloy, Gun Metal, Brass, Aluminum, Aluminum Bronze.OPERATION: Manually Handle operated, Gear operated, Pneumatic Actuator operated, Motorised Actuator operated.
We manufacture valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, and Mill TC 3.1.b available with all supplies. Also, we can provide valves with third-party inspection agencies.
Description
| Allied Three Piece Design Ball Valve Flanged End ASA 150# AND 300# Blow Out Proof SETM, Floating Ball Full Port & Reduce Port Design |
|
|---|---|
| BODY : | INVESTMENT CASTING IC CF8- 304/IC CF8M -SS 316 /IC CF3- SS 304L/IC CF3M- SS 316L ,CS ASTMA 216 GR WCB |
| BALL : | AISI 304/SS 316 / SS 304L/SS 316L –SOLID/ HOLLOW BALL |
| STEM: | AISI 304/SS 316 / SS 304L/SS 316L |
| SEAT&SEAL : | PTFE /RPTFE/GLASSFILLED PTFE/CFT |
| MFG STD : | GENERALLY CONFORMING TO BS 5351 ,API 602 |
| TESTING : | BS 6755 |
| OPERATION: | LEVER MS WIRH ZINC PLATED/SS WITH PVC SLEEVE/ GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR |
| ENDS : | ASA 150#, 300# |
| HYD TEST PRESSURE :150# | BODY:425 PSIG(30KG/CM2) FOR ASA 150# SEAT:300 PSIG (21 KG/CM2) FOR 150# |
| HYD TEST PRESSURE :300# | BODY : 1100 Psig (77 Kg/Cm2) FOR 300# SEAT : 800 Psig (56 Kg/Cm2) |
| SIZE RANGE : | 12 NB TO 200 NB (1/2″ TO 8″ ) |
