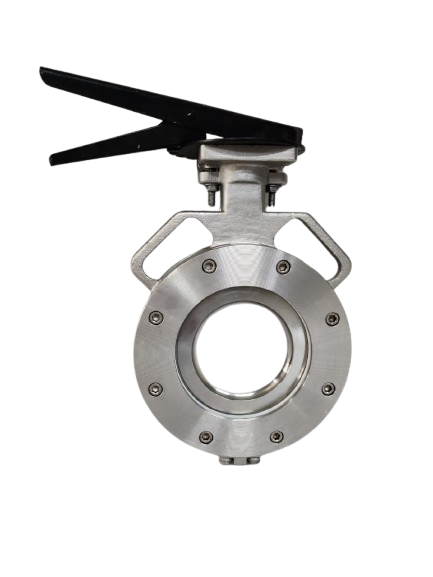

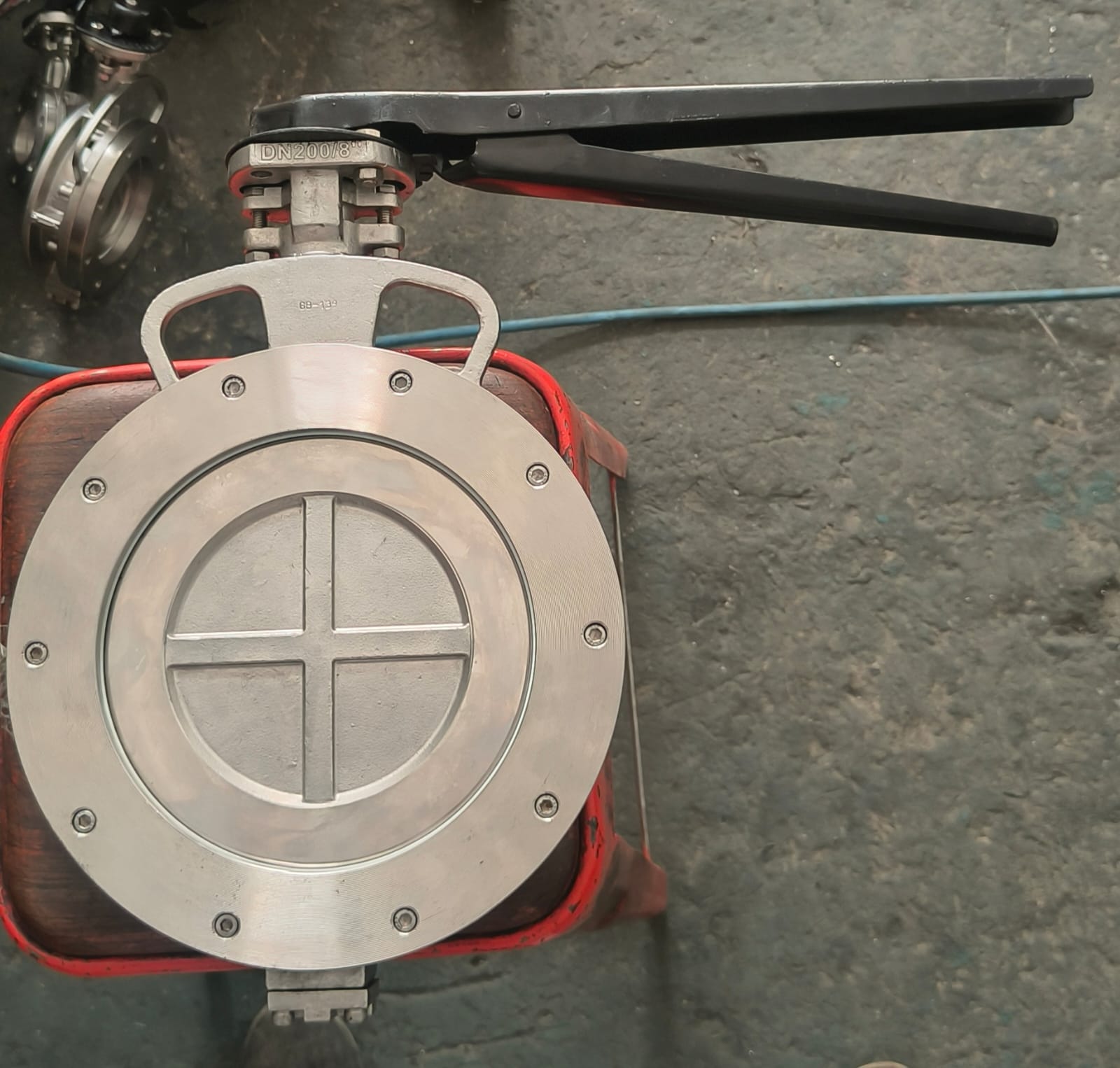

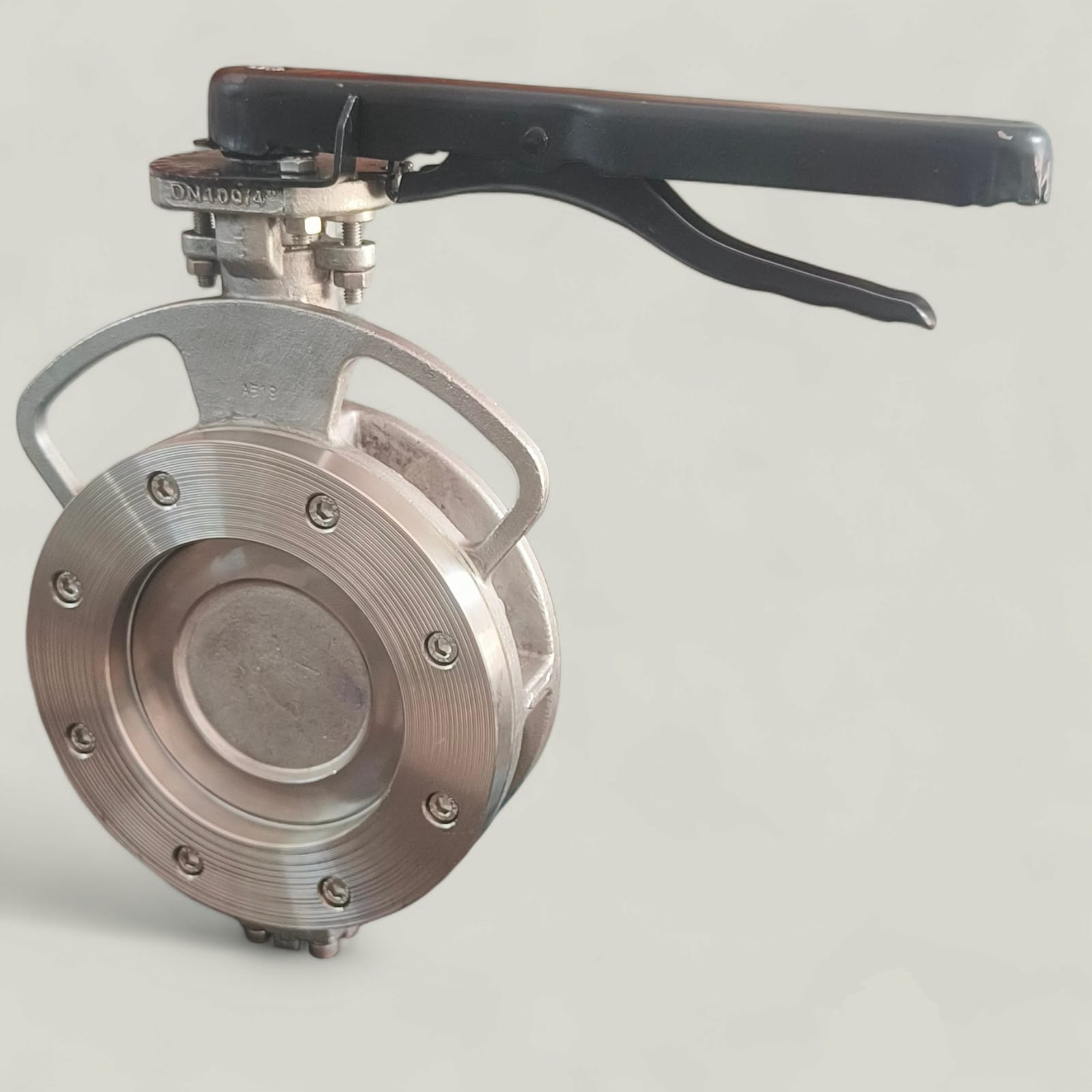

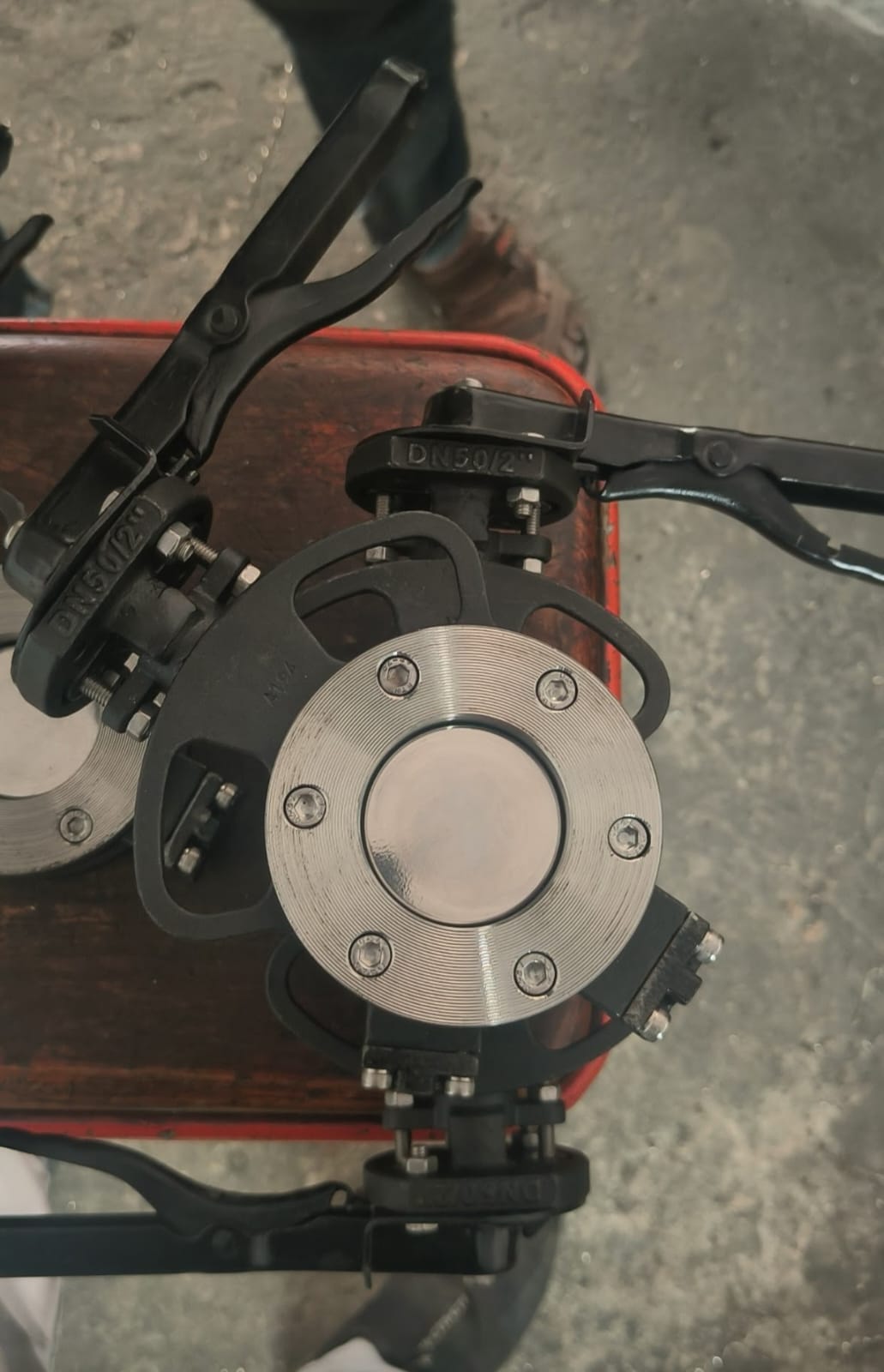

Spherical Disc Butterfly Valve

Allied Valves India is a leading Spherical Disc Butterfly Valve Manufacturer and Supplier in India. We supply precision-engineered, API 598 tested butterfly valves to process industries across India.

What is a Spherical Disc Butterfly Valve?

A Spherical Disc Butterfly Valve is a precision flow control valve featuring a spherically-shaped disc that ensures smoother sealing and consistent shut-off across its wafer-type body. Built in disc materials ASTM A351 Gr CF8 (304) or CF8M (316), with shaft options in AISI 410, 304, or 316, it’s engineered for demanding industrial pipelines. Every valve is tested to API 598 standards. Explore our Butterfly Valve range or compare with our EPDM Rubber Seat Butterfly Valve.

Key Features of Spherical Disc Butterfly Valve

• Spherical disc design for smooth, consistent sealing
• Size range: 50mm to 600mm
• End connection: Wafer type, suitable for ASA 150# / ASME B16.5 (150#)
• Seat options: PTFE, GFT, CFT
• Disc material: ASTM A351 Gr CF8 (304) / CF8M (316)
• Shaft options: AISI 410, 304, or 316

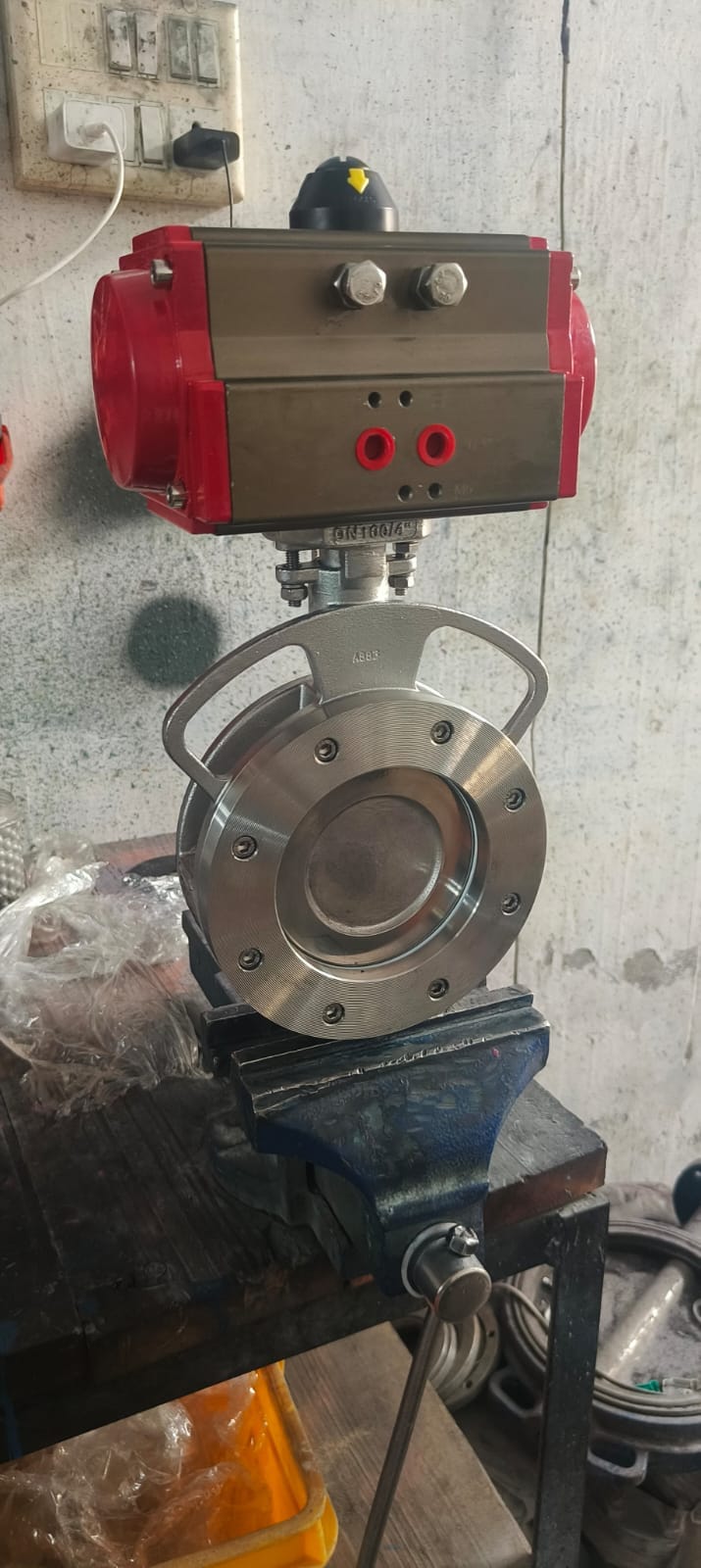

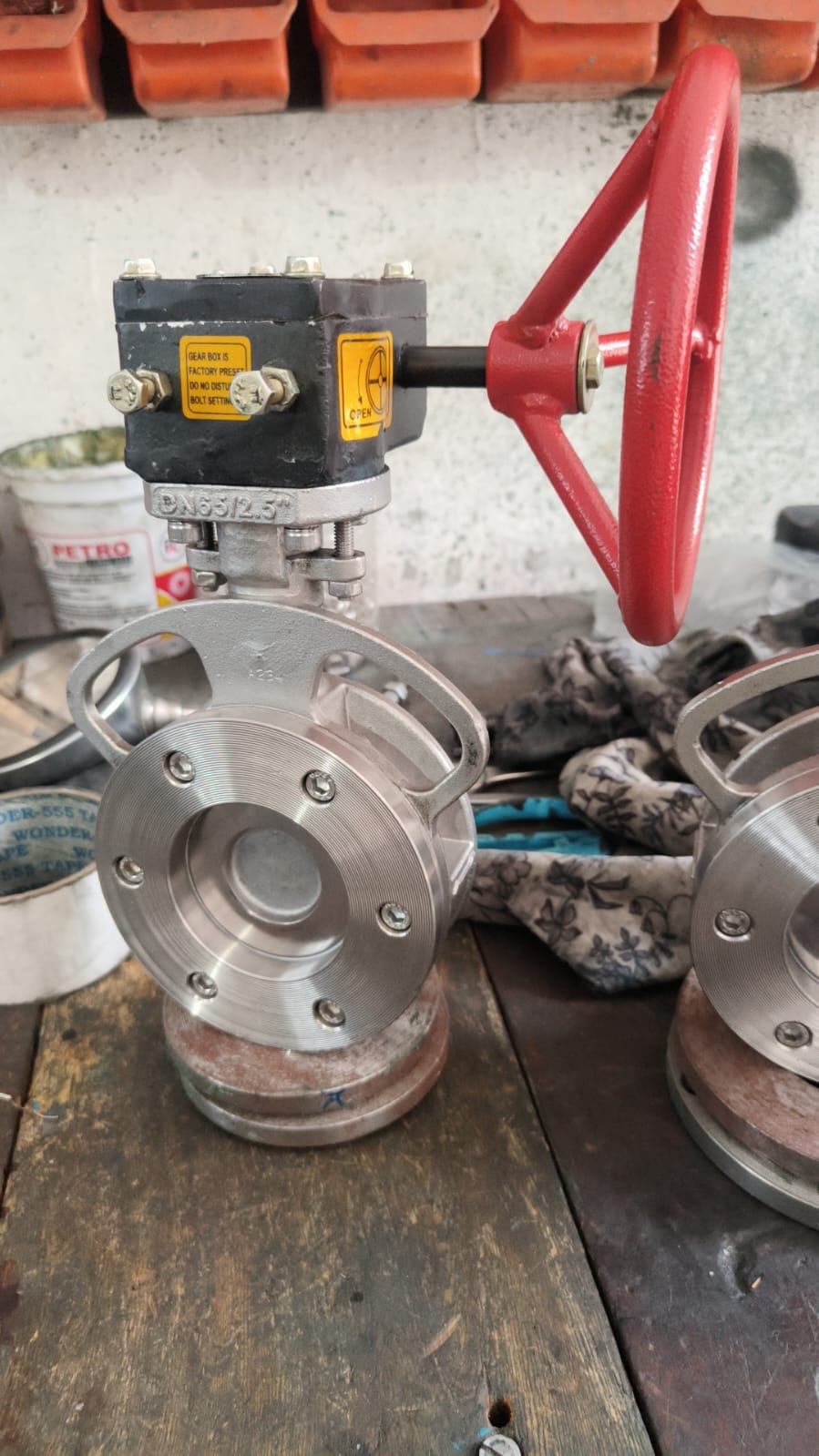

• Operation: Lever, gear, pneumatic, or electric actuator
• Inspection & test standard: API 598
• Hydrostatic test pressure: Body – 300 PSIG (21 kg/cm²)

Applications of Spherical Disc Butterfly Valve

Suited for process industries requiring precise, reliable flow control, including water treatment, chemical processing, and general industrial piping systems where consistent sealing performance is critical to operations.

Benefits of Spherical Disc Butterfly Valve

• Spherical disc geometry improves sealing consistency
• API 598 testing ensures strength and standard compliance
• Multiple seat materials (PTFE, GFT, CFT) suit varied media
• Flexible operation options from manual lever to electric actuation
• Available from single-piece orders for smaller projects

Working of Spherical Disc Butterfly Valve

The spherically-shaped disc rotates within the valve’s wafer-type body to control flow. In the open position, the disc aligns with the flow path for minimal resistance. To close, the disc rotates a quarter-turn, and its curved profile presses evenly against the seat, ensuring a tighter, more consistent seal than flat-disc designs. Operation can be manual via lever or gear, or automated using a pneumatic or electric actuator.

Why Choose Allied Valves?

Allied Valves India manufactures Spherical Disc Butterfly Valves with strict testing to API 598 standards, ensuring strength, consistency, and international norm compliance. With flexible material and operation options, low minimum order quantities, and years of industry experience, we deliver valves built for dependable, precise performance.

Explore our Butterfly Valve range, or Get a Quote today.
