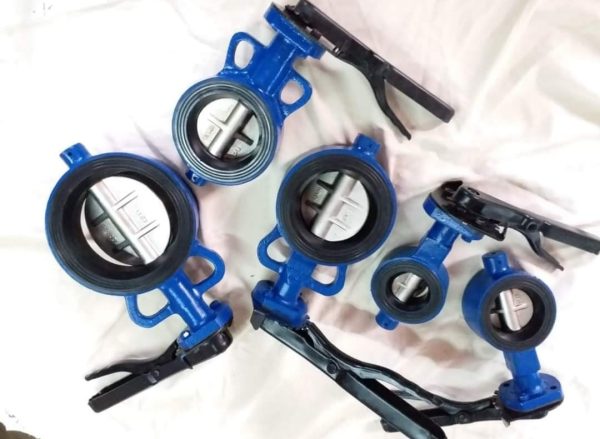

EPDM Rubber Seat Butterfly Valve
Product Catalogue
Allied Industrial Product is a Leading Manufacturer and Supplier of EPDM Rubber Seat Butterfly Valve and this model Butterfly Valve is for just about every conceivable application. We used cast iron, cast steel, SS 304, SS 316, & Ductile Iron as body material, PN 10, PN16, PN20, PN25 Pressure Rating. Allied’s EPDM Rubber Seat Butterfly Valve is available in Sizes 15 MM To 300 MM.
Description
PRODUCT DESCRIPTION |
|
| BODY | CAST IRON | DUCTILE IRON | CAST STEEL | SS 304 | SS 316 |
| DISC | S.G.IRON | SS 304 | SS 316 |
| STEM | SS 410 | SS 304 | SS 316 |
| SEAT & SEAL | NITRILE | PTFE | TEFLON | VITON |
| MFG STD | BS 5155 |
| TEST STD | BS 6755 |
| END CONNECTION | WAFER TYPE | WAFER LUGGED TYPE |
| HYD TEST PRESSURE | BODY: 340 PSIG (24 KG/CM2) SEAT: 230 PSIG (16 KG/CM2) |
| OPERATION | LEVER | GEAR |
| PRESSURE RATING | PN 10| PN 16 | PN 20 | PN 25 |
| SIZE RANGE | 15 MM TO 300 MM |
HYD. TEST PRESSURE |
||
| Pressure Rating | Body | Seat |
| PN-10 | 15 Kg/Cm² | 10 Kg/Cm² |
| PN-16 | 24 Kg/Cm² | 17.6 Kg/Cm² |
SEAT |
|
| EPDM | -20°C to 120°C |
| NITRILE | -10°C to 80°C |
| HYPALON | -20°C to 135°C |
| VITON | -18°C to 150°C |
| SILICON | -20°C to 180°C |
