Double Flange Butterfly Valves
Product Catalogue

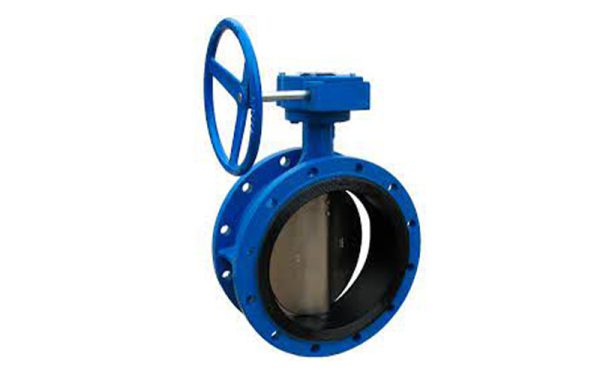

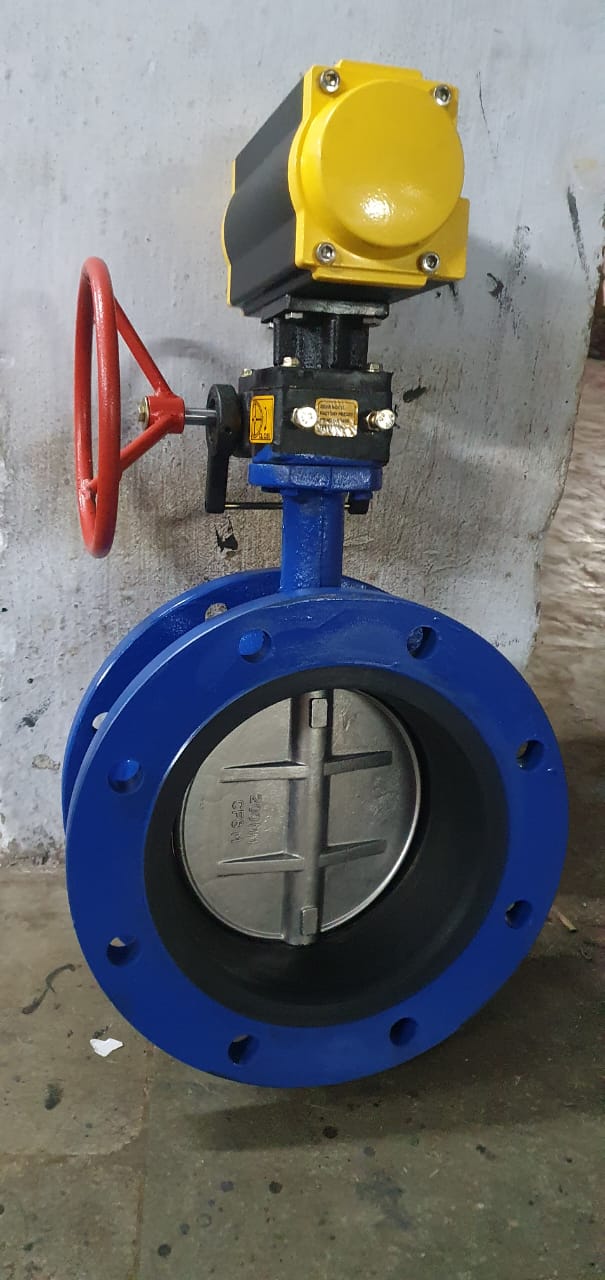

Allied’s Double Flange Butterfly valves are center disc design and offset disc design, with Flow control Lever operation Gear operation as well as Pneumatic cylinder/ Pneumatic Actuator operation and Electric operation with single phase or three phases.
We manufacture valves from genuine guaranteed raw material with material test certificates, hydraulic test certificates, and Mill TC 3.1.b available with all supplies. Also, we can provide valves with third party inspection agencies.
Description
| Allied’s Double Flanged Butterfly Valve PN 10 & PN 16, Center Design | |
|---|---|
| BODY: | IS 210 GR FG 200/220/CS ASTMA 216 GR WCB /SG IRON/ SS 304 / SS 316 |
| DISC: | IS 210 GR FG 200/220/CS ASTMA 216 GR WCB/SG IRON/ SS 304 / SS 316 |
| SEAT: | MOLDED/REPLACEABLE NITRILE/EPDM/SILICON/VITON / HYPOLON |
| SHAFT: | AISI 410 /AISI 304/AISI 316 |
| MFG STD: | BS 5155 |
| INSP &TEST STD: | BS 6755/BS 5155 |
| OPERATION: | MANUAL GEAR OPERATED/ PNEUMATIC ACTUATOR/ELECTRIC ACTUATOR |
| ENDS: | FLANGED END TO PN 10/ PN 16 / ASA 150# |
| HYD TEST PRESSRE: | BODY:225 PSIG (16 KG/CM2)] SEAT: 165 PSIG (11.5 KG/CM2) |
| SIZE RANGE: | 25 NB TO 1200 NB(1″ to 48″) |
