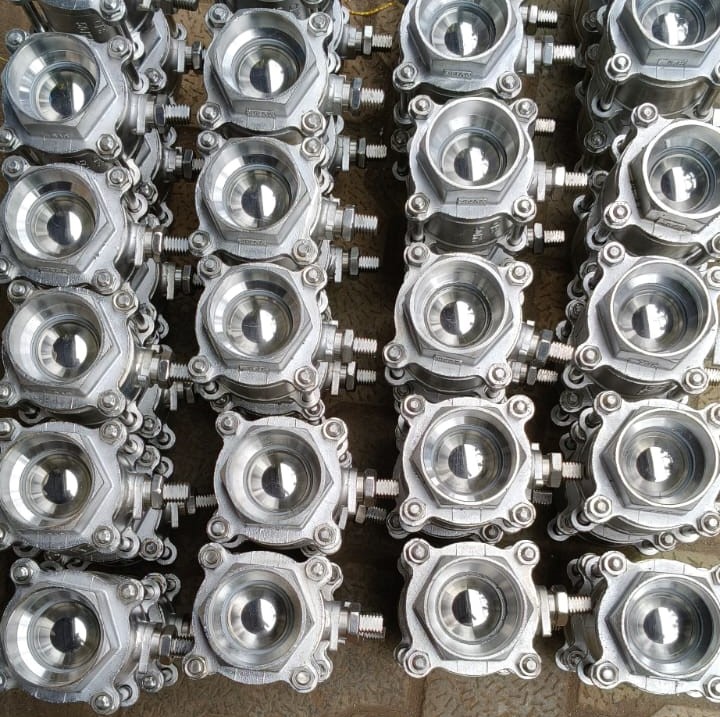

2 Piece Design Ball Valve
Product Catalogue
Description
PRODUCT DESCRIPTION |
|
| BODY | CAST IRON | CAST STEEL | SS 304 | SS 316 | SS 316L |
| BALL | AISI 410 | AISI 304 | AISI 316 | SS 304L | SS 316L |
| STEM | SS 410 | SS 304 | SS 316 | SS 304L | SS 316L |
| SEAT & SEAL | PTFE | RPTFE | GFT | TEFLON | VITON | METAL TO METAL |
| MFG STD | BS 5351 |
| TEST STD | BS 6755 |
| END CONNECTION | SCREWED END TO BSP, NPT (F) | SOCKETWELD END |
| HYD TEST PRESSURE | BODY: 425 PSIG (30 KG/CM2) SEAT: 300 PSIG (21 KG/CM2) |
| OPERATION | LEVER |
| TYPE | SINGLE PIECE | TWO PIECE | THREE PIECE | 3 WAY | 4 WAY |
| SIZE RANGE | 15 MM TO 300 MM |
MATERIAL DETAIL |
||||||
| PART NO. | PART NAME | CAST IRON | CAST STEEL (WCB) | MS | CF8 | CF8M |
| 01 | BODY | IS 210 GR FG 200 | ASTM A 216 GR WCB | MS – EN8 | A 351 CF8 | A 351 CF8M |
| 02 | CONNECTORS | IS 210 GR FG 200 | ASTM A 216 GR WCB | MS – EN8 | A 351 CF8 | A 351 CF8M |
| 03 | BALL | AISI 304 / AISI 316 / S.S.304 / S.S.316 | S.S.304/ CF3 | S.S.316/ CF3M | ||
| 04 | STEM | AISI 304 / AISI 316 / S.S.304 / S.S.316 | S.S.304 / CF3 | S.S.316 / CF3M | ||
| 05 | GLAND | AISI 304 / AISI 316 / S.S.304 / S.S.316 | ||||
| 06 | BALL SEALS | PTFE / RPFE / VITON / EPDM (on Request) | ||||
| 07 | BODY SEALS | PTFE / RPFE / VITON / EPDM (on Request) | ||||
| 08 | STEM PACKING | PTFE / RPFE / VITON / EPDM (on Request) | ||||
| 09 | GLAND PACKINGS | PTFE / RPFE / VITON / EPDM (on Request) | ||||
| 10 | GLAND NUT & STEM NUT | AISI 410 / AISI 304 / AISI 316 | ||||
| 11 | HANDLE | S.S. / M.S. / C.S. | ||||
| 12 | SLEEVE | PVC | ||||
| 13 | BODY STUDS & NUTS | ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H / S.S. / C.S. | ||||
