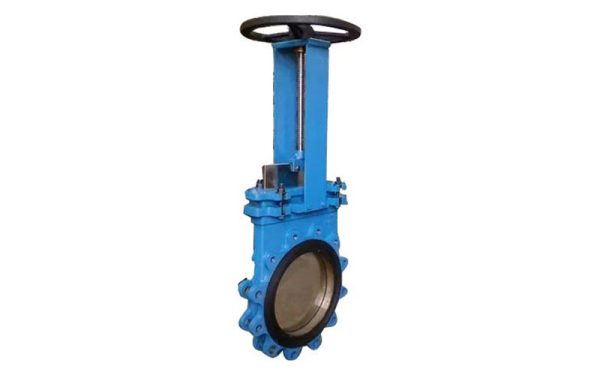

Uni Directional Knife Edge Gate Valve

Allied Valves India is a leading Uni Directional Knife Edge Gate Valve Manufacturer and Supplier in Ahmedabad, Gujarat. We supply non-clogging knife edge gate valves to industries across India.



What is a Uni Directional Knife Edge Gate Valve?

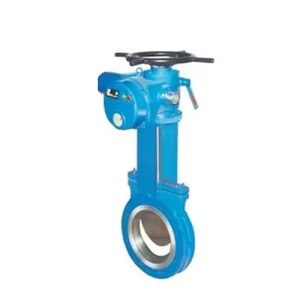

A Uni Directional Knife Edge Gate Valve is an industrial isolation valve engineered for reliable shut-off of suspended solids, designed to handle flow in a single direction. Its advanced body and seat design ensures non-clogging shut-off, well-suited for slurry, pulp, or solid-laden media. Available in sizes from 25mm to 600mm, with body options in CF8, CF8M, and WCB, it’s dependable across mining, chemical, and wastewater treatment. Explore our Knife Edge Gate Valve range or compare with our Electrical Operated Knife Edge Gate Valve.



Key Features of Uni Directional Knife Edge Gate Valve

• Non-clogging body and seat design for suspended solids
• Size range: 25 mm to 600 mm (larger on request)
• Body options: CF8, CF8M, WCB
• Gate & seat ring in AISI 304 or AISI 316
• Seat options: Metal-to-Metal or Soft Seat
• Working pressure: 10 kg/cm² (150 psi) up to DN 450; 5 kg/cm² (80 psi) above
• Operation: Pneumatic, Manual, or Bevel Gear
• Standard flanges: DIN PN 10, ANSI B16.5 Class 150, Table E



Applications of Uni Directional Knife Edge Gate Valve

Widely used across pulp & paper, power plants, wastewater treatment, food & beverage, mining, steel plants, chemical plants, and oil & gas industries — anywhere reliable, one-directional shut-off of solid-laden or slurry flow is required.



Benefits of Uni Directional Knife Edge Gate Valve

• Non-clogging design minimizes maintenance and downtime
• Reliable shut-off even with suspended solids in the line
• Multiple operation types offer flexibility for manual or automated setups
• Robust material options resist corrosion and wear
• Wide pressure and size range suits diverse pipeline requirements



Working of Uni Directional Knife Edge Gate Valve

The knife-edge gate moves vertically within the valve body to control flow in a single direction. When open, the gate retracts fully, allowing unrestricted passage of slurry or solid-laden media. To close, the sharp gate lowers through the flow path, cutting through solids or fibrous material as it descends, then seats firmly — either metal-to-metal or against a soft seat — for a tight shut-off. Operation can be manual via a handwheel or automated via pneumatic or bevel-gear actuation.





Why Choose Allied Valves?

Allied Valves India manufactures Uni Directional Knife Edge Gate Valves with a strong focus on non-clogging performance and durability, using premium materials like CF8M and AISI 316. With a wide size range, multiple operation options, and years of industry experience, we deliver valves built for dependable, long-term service.





Explore our Knife Edge Gate Valve range, or Get a Quote today.
