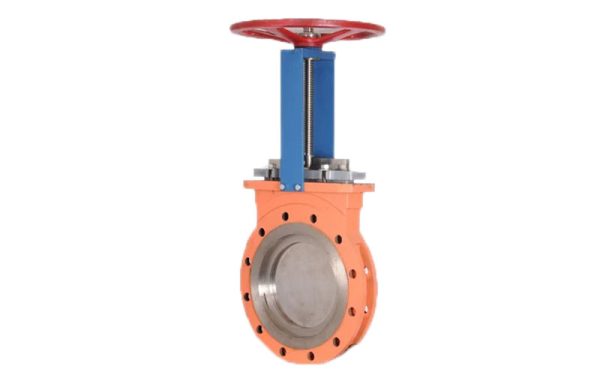

Double Flange Knife Edge Gate Valve

Allied Valves India, based in Ahmedabad, Gujarat, manufactures the Double Flange Knife Edge Gate Valve for secure shut-off in demanding industrial processes handling slurry, powders, wastewater, and viscous media. Its double-flanged design provides stable pipeline connections, leak-resistant performance, easy installation, and reliable operation across a wide range of industrial applications.

Body	CAST IRON \| S.G. IRON \| DI \| CAST STEEL \| SS 304 \| SS 316 \| SS 304L \| SS 316L \| WC6 \|WC9
Knife Plate	WCB \| AISI 304 \| AISI 316 \| SS 304L \| SS 316L
Seals	PTFE
Seat	NITRILE \| BUNA N \| EPDM \| VITON \| METAL TO METAL
End Conn.	Double Flange
Size Range	25 MM to 600 MM
Type	Double Flange

Allied Valves India is a leading Double Flange Knife Edge Gate Valve Manufacturer in Ahmedabad, Gujarat. We supply durable, flange-end knife edge gate valves to industries across India.

What is a Double Flange Knife Edge Gate Valve?

A Double Flange Knife Edge Gate Valve is an industrial isolation valve fitted with flanged connections on both ends, allowing it to be bolted directly into a pipeline for secure, leak-tight installation. It features a sharp knife-edge gate that cuts through slurry, pulp, and solid-laden media as it closes, ensuring reliable shut-off even with suspended solids present. Available in a wide range of body materials and sizes to suit varied industrial pipelines. Explore our Knife Edge Gate Valve range or compare with our Double Acting Cylinder Operated Knife Edge Gate Valve.

Key Features of Double Flange Knife Edge Gate Valve

Double flange end connections for secure, bolted pipeline installation
Size range: 25 mm to 600 mm
Body materials: Cast Iron, S.G. Iron, DI, Cast Steel, SS 304/316/304L/316L, WC6, WC9
Knife plate options: WCB, AISI 304, AISI 316, SS 304L, SS 316L
PTFE seals for reliable, leak-proof sealing
Seat options: Nitrile, Buna N, EPDM, Viton, or Metal-to-Metal
Anti-clogging knife-edge gate design for solids-heavy media

Applications of Double Flange Knife Edge Gate Valve

Well-suited for pulp & paper, wastewater treatment, power plants, food & beverage, mining, steel plants, chemical plants, pharma, and slurry applications — particularly where a rigid, fully-bolted flange connection is needed for stability and leak prevention.

Benefits of Double Flange Knife Edge Gate Valve

Secure, vibration-resistant installation via double flange connections
Anti-clogging gate design reduces maintenance and downtime
Wide material selection resists corrosion and abrasion
Multiple seat options allow chemical and temperature compatibility
Easy alignment and bolting simplifies installation

Working of Double Flange Knife Edge Gate Valve

The knife-edge gate moves vertically within the valve body to control flow. When open, the gate retracts fully, allowing unrestricted passage of slurry or solid-laden media. To close, the sharp gate lowers through the flow path, cutting through fibrous or settled solids as it descends, then seats firmly against the PTFE-sealed seat for a tight shut-off. The double flange ends keep the valve firmly secured to the pipeline, minimizing movement and ensuring consistent sealing over repeated cycles.

Why Choose Allied Valves?

Allied Valves India manufactures Double Flange Knife Edge Gate Valves at our Ahmedabad facility, offering a wide choice of body materials, seat types, and sizes to match your exact process requirements. With strong technical support and years of industry experience, we ensure valves built for dependable, long-term performance.

Explore our Knife Edge Gate Valve range, or Get a Quote today.
