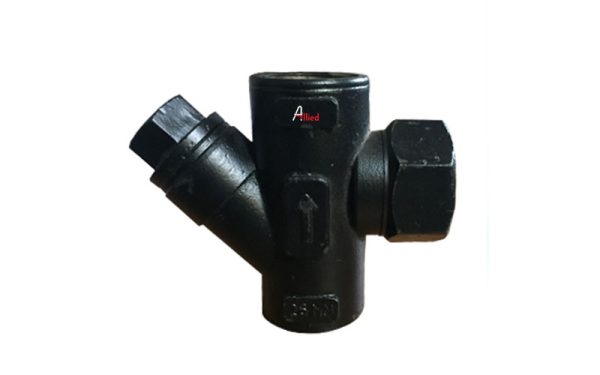

Thermodynamic TD-3 Steam Trap

Allied Valves India is a Leading Manufacturer and Supplier of Thermodynamic TD-3 Steam Trap, and this model Steam Trap is for just about every conceivable application. We used SS CF8/CF8M/CA-40 body, SS 304 (20/40 Mesh) screen, and SS CF8/CF8M/CA40 plug.

What is a Thermodynamic TD-3 Steam Trap?

A Thermodynamic TD-3 Steam Trap is a compact, valve-based steam trap that uses the thermodynamic properties of steam and condensate to automatically discharge condensate while blocking live steam. Built with body, plug, disc, and cover in SS CF8/CF8M/CA-40, and a SS 304 (20/40 mesh) screen for filtration, it’s a simple, robust design with few moving parts. Available in sizes 10mm to 25mm. Explore our Steam Trap range or compare with our Inverted Bucket Type Steam Trap.

Key Features of Thermodynamic TD-3 Steam Trap

• Thermodynamic disc mechanism for automatic condensate discharge
• Body: SS CF8, CF8M, or CA-40
• Screen: SS 304 (20/40 Mesh)
• Plug & disc: SS CF8, CF8M, or CA40
• Body cover: SS CF8, CF8M, or CA40
• Compact, single-moving-part design
• Size range: 10mm to 25mm

Applications of Thermodynamic TD-3 Steam Trap

Widely used in steam distribution lines, tracer lines, and process heating systems where a compact, low-maintenance steam trap is needed to remove condensate efficiently without allowing steam loss.

Benefits of Thermodynamic TD-3 Steam Trap

• Simple single-disc design means fewer moving parts and less maintenance
• Stainless steel construction resists corrosion in demanding steam environments
• Built-in screen filters debris, protecting internal components
• Compact size suits space-constrained installations
• Reliable performance across varying steam pressures
• Quick response to changing condensate and steam conditions

Working of Thermodynamic TD-3 Steam Trap

Condensate flowing into the trap lifts the disc, allowing it to pass through and discharge from the outlet. As hot condensate approaches, some of it flashes into steam due to the pressure drop across the trap, and this flash steam accelerates beneath the disc, creating a low-pressure zone above it. The pressure differential snaps the disc shut, blocking live steam from escaping. As the trapped steam cools and condenses, pressure drops and the disc reopens, restarting the discharge cycle.

Why Choose Allied Valves?

Allied Valves India manufactures Thermodynamic TD-3 Steam Traps using durable stainless steel construction, ensuring reliable performance in demanding steam systems. With a compact, low-maintenance design, built-in filtration, and years of industry experience, we deliver steam traps built for dependable, long-term operation.

Explore our Steam Trap range, or Get a Quote today.
