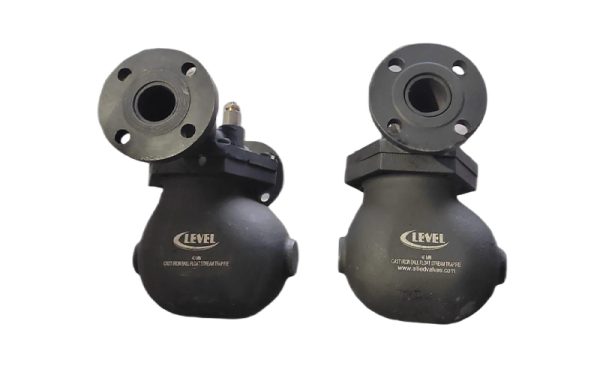

Ball Float Steam Trap

Allied Valves India is a Leading Manufacturer and Supplier of Ball Float Steam Trap and this model Steam Trap is for just about every conceivable application. We used CS WCB and SG Iron as body & cover material, with an available pressure range of 0-15 kgs.

What is a Ball Float Steam Trap?

A Ball Float Steam Trap is a continuous-discharge steam trap that uses a floating ball mechanism to automatically release condensate from steam lines while preventing live steam loss. Built with body and cover in CS (WCB) or SG Iron, and internal parts in SS 304/AISI 304, it operates across a pressure range of 0-15 kgs. Available in sizes 15mm to 50mm with screwed end connections. Explore our Steam Trap range or compare with our Inverted Bucket Type Steam Trap.

Key Features of Ball Float Steam Trap

• Ball float mechanism for continuous condensate discharge
• Body & cover: CS (WCB) or SG Iron
• Ball assembly, SLR unit, SLR seat & gland: AISI 304
• Packing: Asbestos
• Cover gasket: CAF
• Cover bolts: Cast Steel
• Pressure range: 0-15 kgs
• End connection: Screwed
• Size range: 15mm to 50mm

Applications of Ball Float Steam Trap

Widely used in steam distribution systems, process heating, and industrial plants where continuous, reliable condensate removal is needed to maintain heating efficiency and prevent water hammer in steam lines.

Benefits of Ball Float Steam Trap

• Continuous discharge prevents condensate buildup in steam lines
• Automatic float operation requires no manual intervention
• Durable CS WCB and SG Iron construction suits industrial service
• Reliable pressure range (0-15 kgs) suits common steam applications
• Compact screwed-end design simplifies installation
• Protects downstream equipment from water hammer and condensate damage

Working of Ball Float Steam Trap

As condensate accumulates inside the steam trap body, it raises the internal float ball. This rising motion lifts a lever mechanism connected to the discharge valve, opening it to release the condensate while steam pressure keeps the valve closed to live steam. As the condensate level drops, the float lowers and the valve closes again, maintaining a continuous, self-regulating discharge cycle that removes water without allowing steam to escape.

Why Choose Allied Valves?

Allied Valves India manufactures Ball Float Steam Traps using durable CS WCB and SG Iron construction, ensuring reliable condensate removal across industrial steam systems. With a proven pressure range, quality internal components, and years of industry experience, we deliver steam traps built for dependable, long-term performance.

Explore our Steam Trap range, or Get a Quote today.
