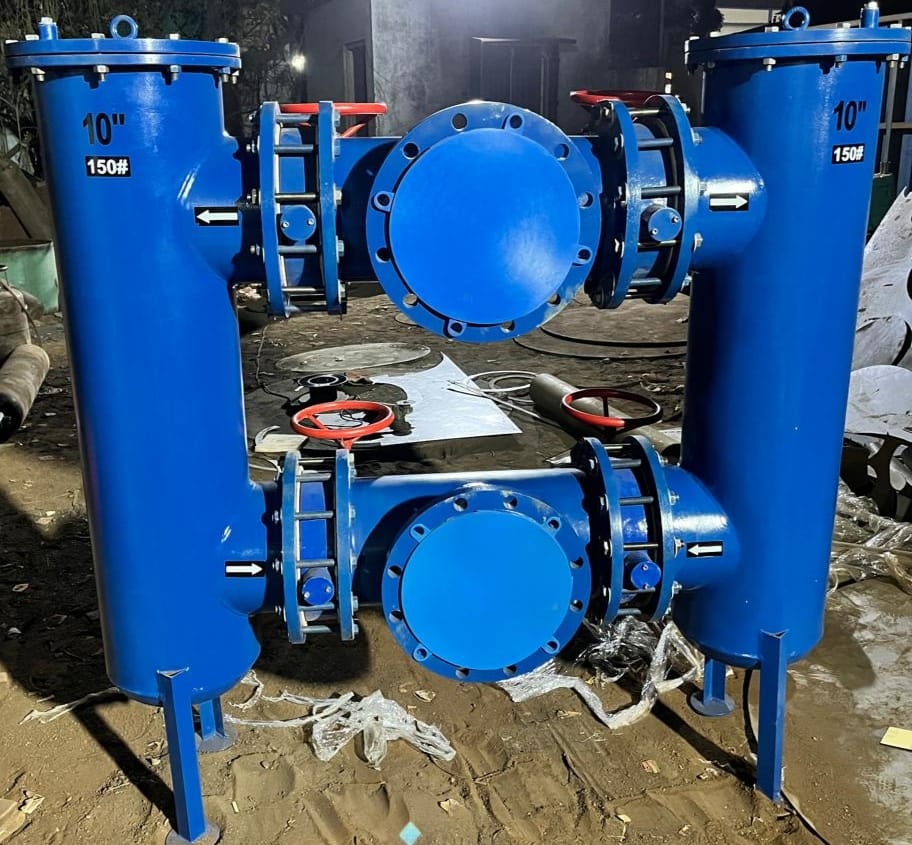

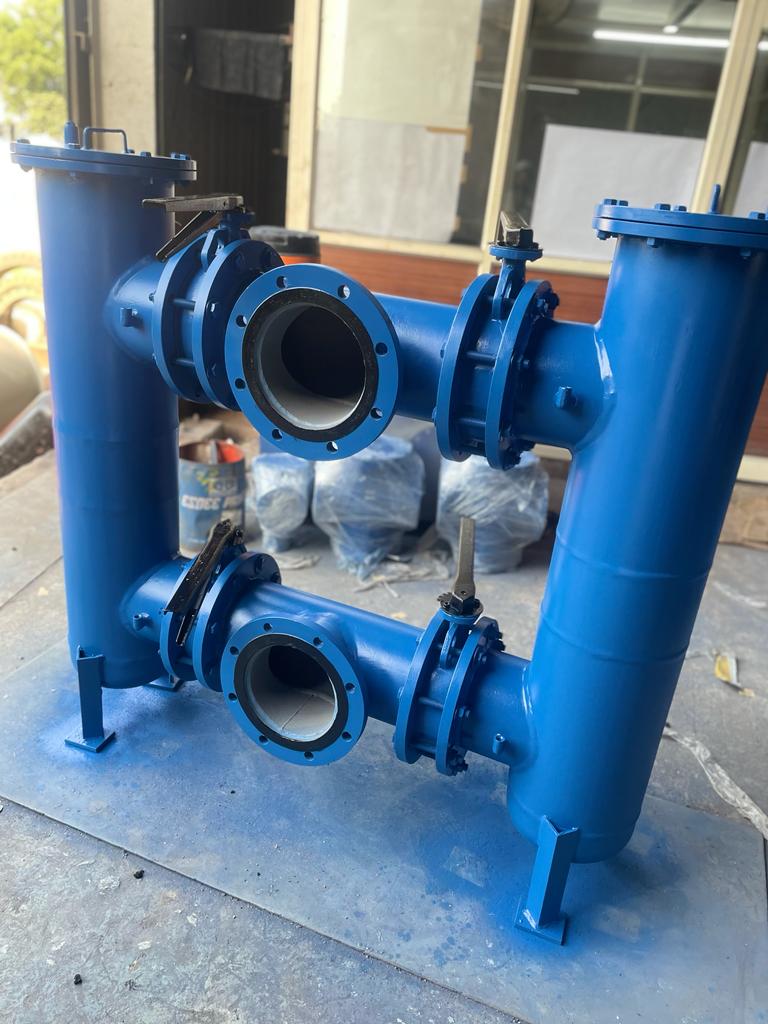

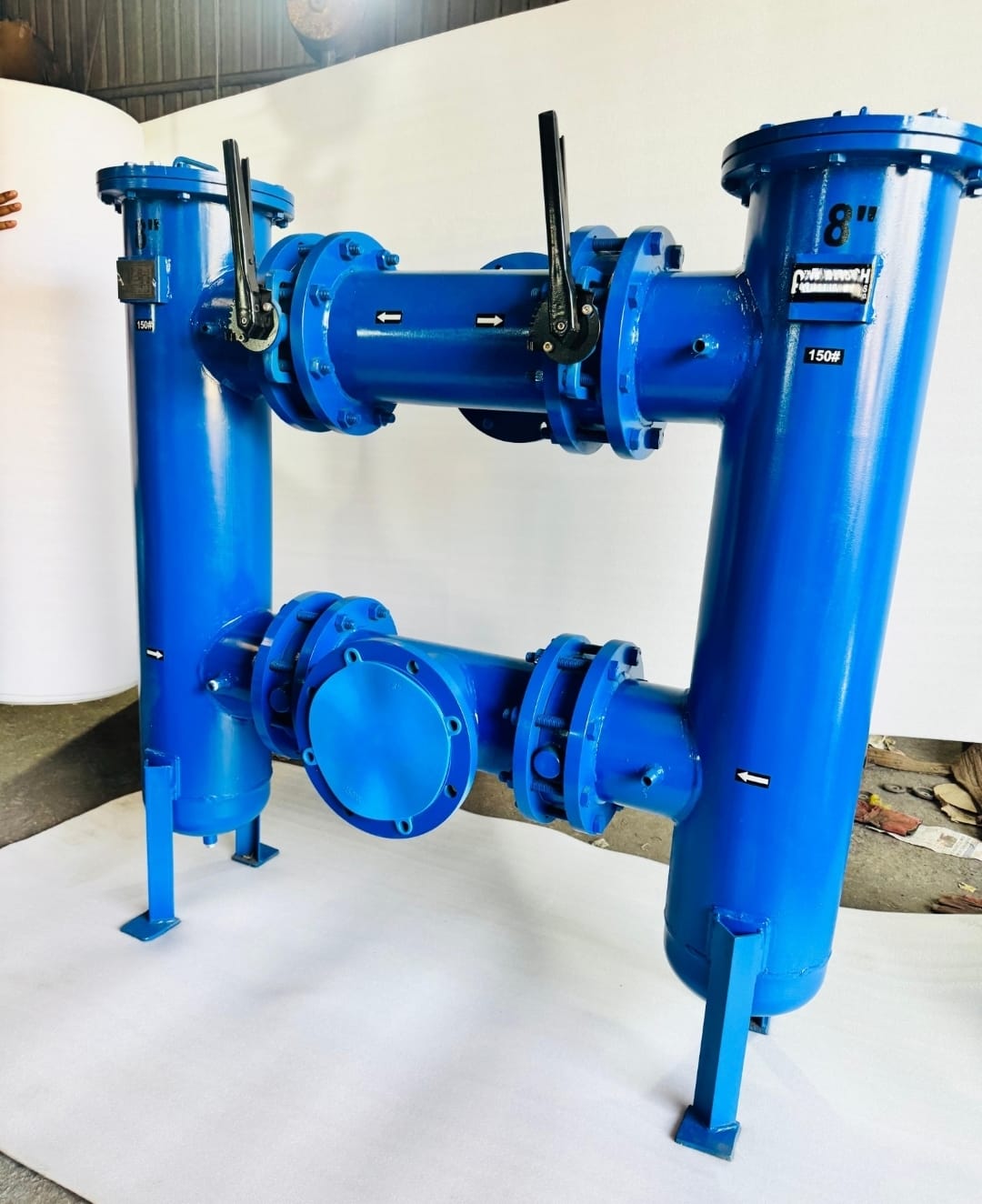

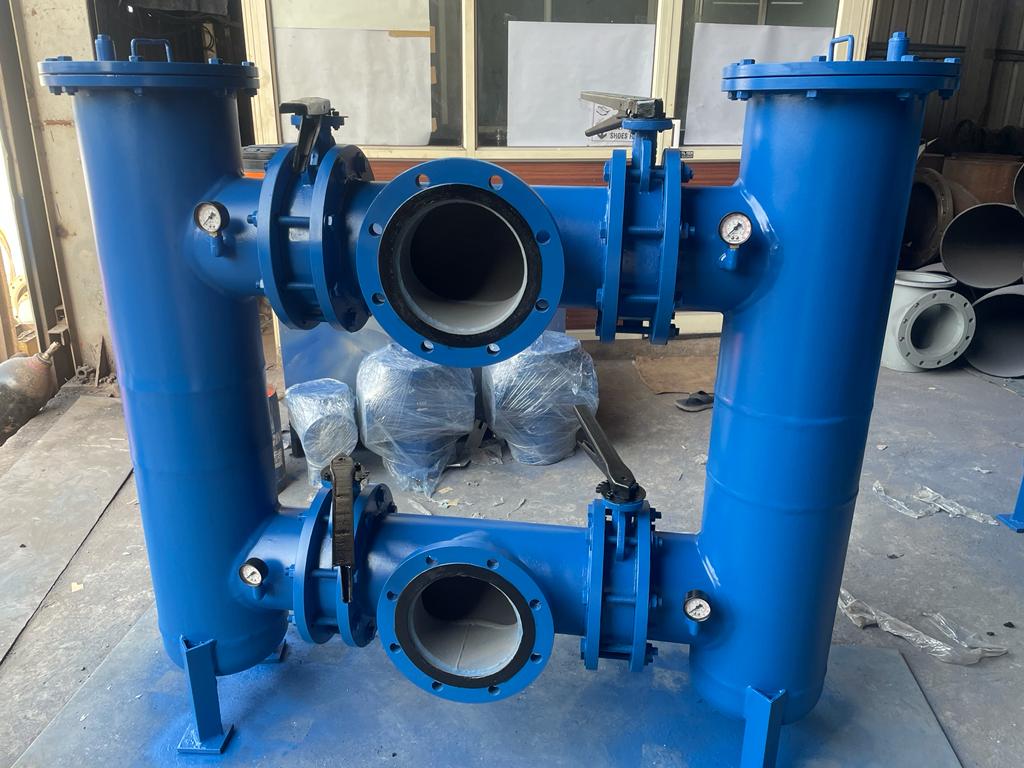

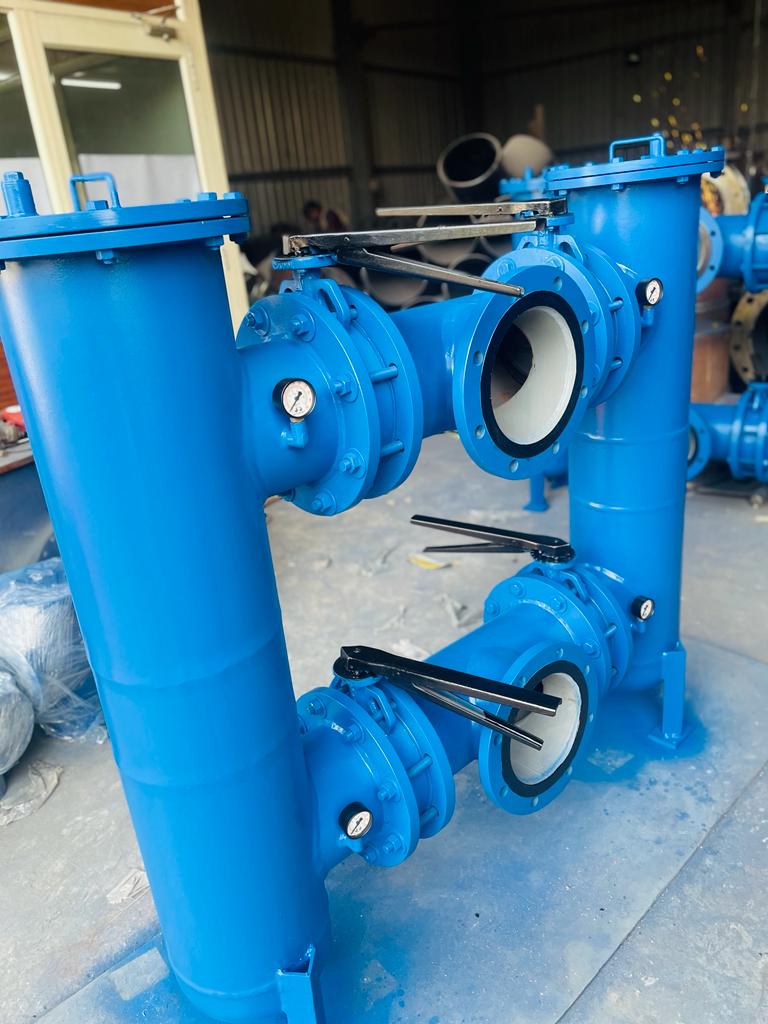

Allied Valves India is a leading manufacturer and supplier of Fabricated duplex strainers (double basket strainers) in Ahmedabad, Gujarat. Double Basket Strainers are used when the flow or process cannot be shut down and must continue to flow. Thus, duplex strainers allow you to shut one basket for cleaning while the other is still in operation. Moreover, double basket strainers are normally used where larger amounts of trash/solids need to be removed. The screen is in the shape of a basket and removed from the top of the fabricated duplex strainer. Fabricated duplex strainers can come with a blow-off connection for manual or automatic cleaning.
| Body | MILD STEEL / SS 304 / SS 316 |
| Size | 50MM TO 600MM |
| Pressure | 20 KG cm² |
| Temperature | 0 TO 200 C |
| Operating Pressure | 10 kg |
| Operating Temp | 200 C |
| Surface Finish | EPOXY Painting |
| Connection Standard | Flanged END ASA 150# |
| OPERATION | MANUAL | GEAR |
| Media | Water, Oil, Gas, Liquid |
The main application for duplex strainers is in fluid handling systems such as cooling water, fire lines, hydrocarbon, fuel lines, freshwater, pump suction, compressors, and lubrication systems. A fabricated duplex strainer’s body can be casting or fabricated material. Always check material compatibility with the process. Screens should be sized to meet the perforations, and mesh requirements.
Fabricated duplex strainer gaskets, end connections, and blow-off connections should be part of the sizing equation. Contact us for more information or for a quote.
These types of strainers are installed in pipeline systems where flow cannot be stopped. Depending upon their NB size they are capable of filtration up to 40 µm. Basket Strainers find use in industries where impurities are mostly solids. Unlike other types of strainers, it is easy to conduct maintenance on these strainers.
Allied Valves India is a leading Fabricated Duplex Type Strainer Manufacturer and Supplier in India. We supply double basket strainers for continuous-flow filtration to process industries across India.
A Fabricated Duplex Type Strainer is a double basket strainer designed for systems where flow cannot be shut down, allowing one basket to be cleaned while the other stays in operation. Ideal for removing larger amounts of trash and solids, its basket-shaped screen lifts out from the top for easy maintenance, with an optional blow-off connection for manual or automatic cleaning. Available in Mild Steel, SS 304, or SS 316. Explore our Strainers range or compare with our POT Type Strainer.
Widely used in cooling water systems, fire lines, hydrocarbon and fuel lines, freshwater systems, pump suction lines, compressors, and lubrication systems — anywhere continuous flow must be maintained during strainer cleaning.
Process fluid flows through one basket at a time inside the duplex body, while a diverter valve directs flow between the two chambers. As fluid passes through the basket-shaped screen, solids and debris are trapped inside while filtered fluid continues downstream. When the active basket needs cleaning, the diverter valve redirects flow to the second basket, allowing the first to be opened from the top, cleaned or replaced, and returned to service — all without interrupting the process.
Allied Valves India manufactures Fabricated Duplex Type Strainers designed for demanding, continuous-flow applications, with durable body materials and an epoxy-coated finish for long-term corrosion resistance. With flexible sizing, manual or gear operation, and years of industry experience, we deliver strainers built for dependable, uninterrupted filtration.
Explore our Strainers range, or Get a Quote today.
