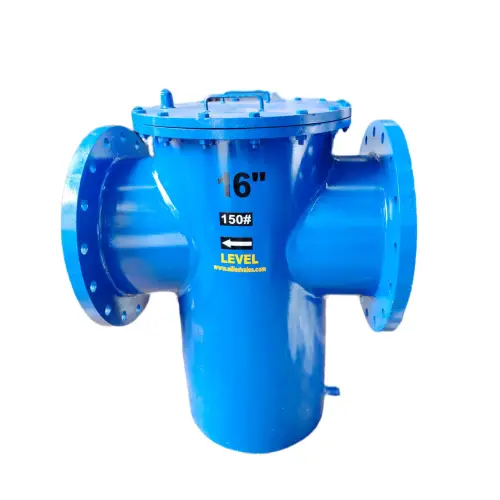

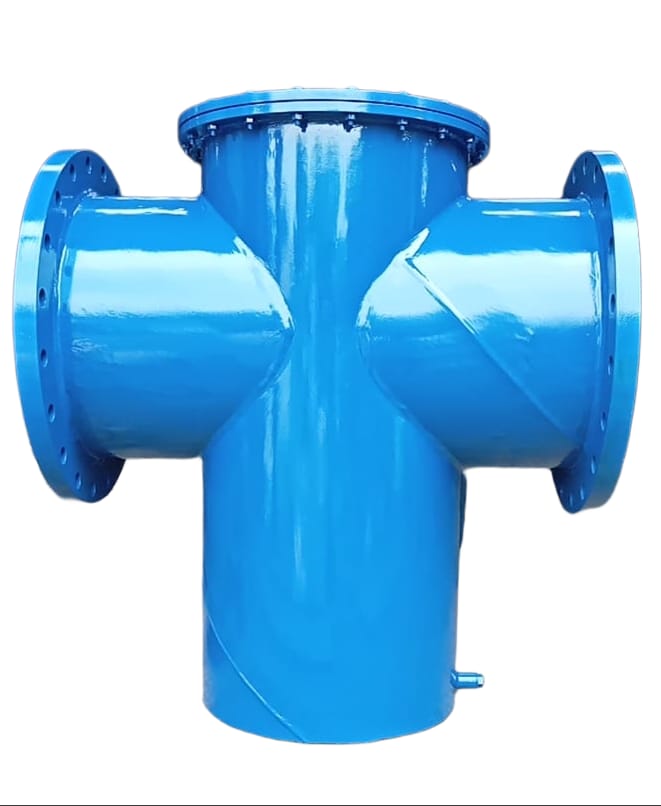

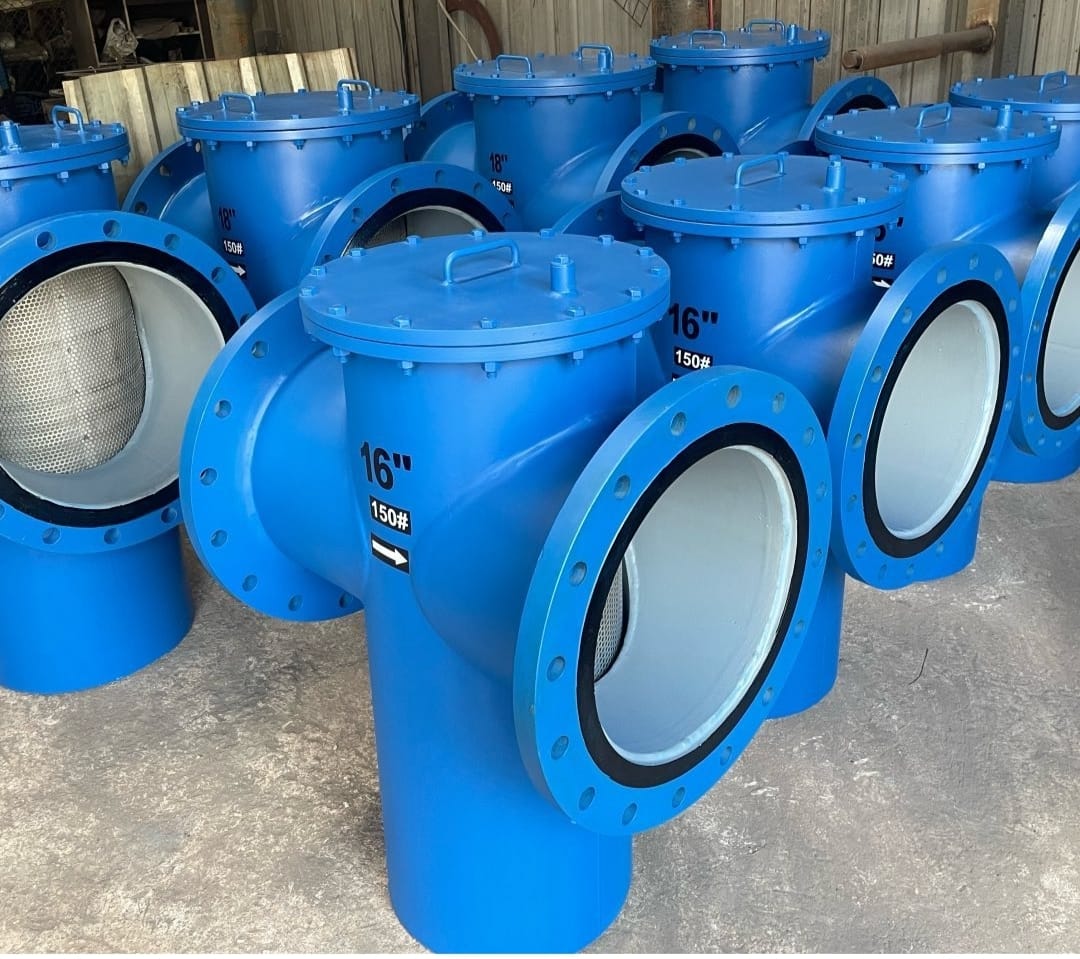

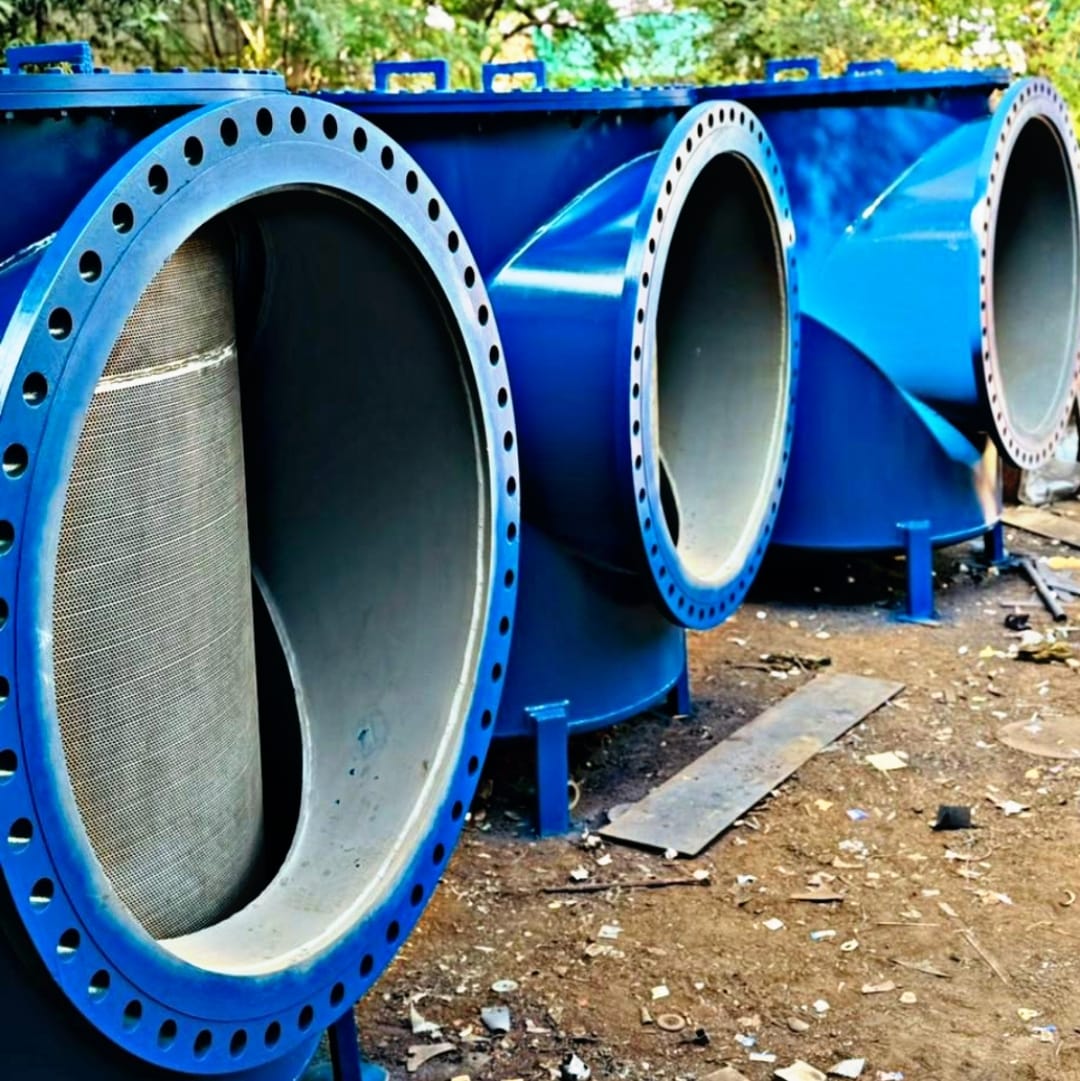

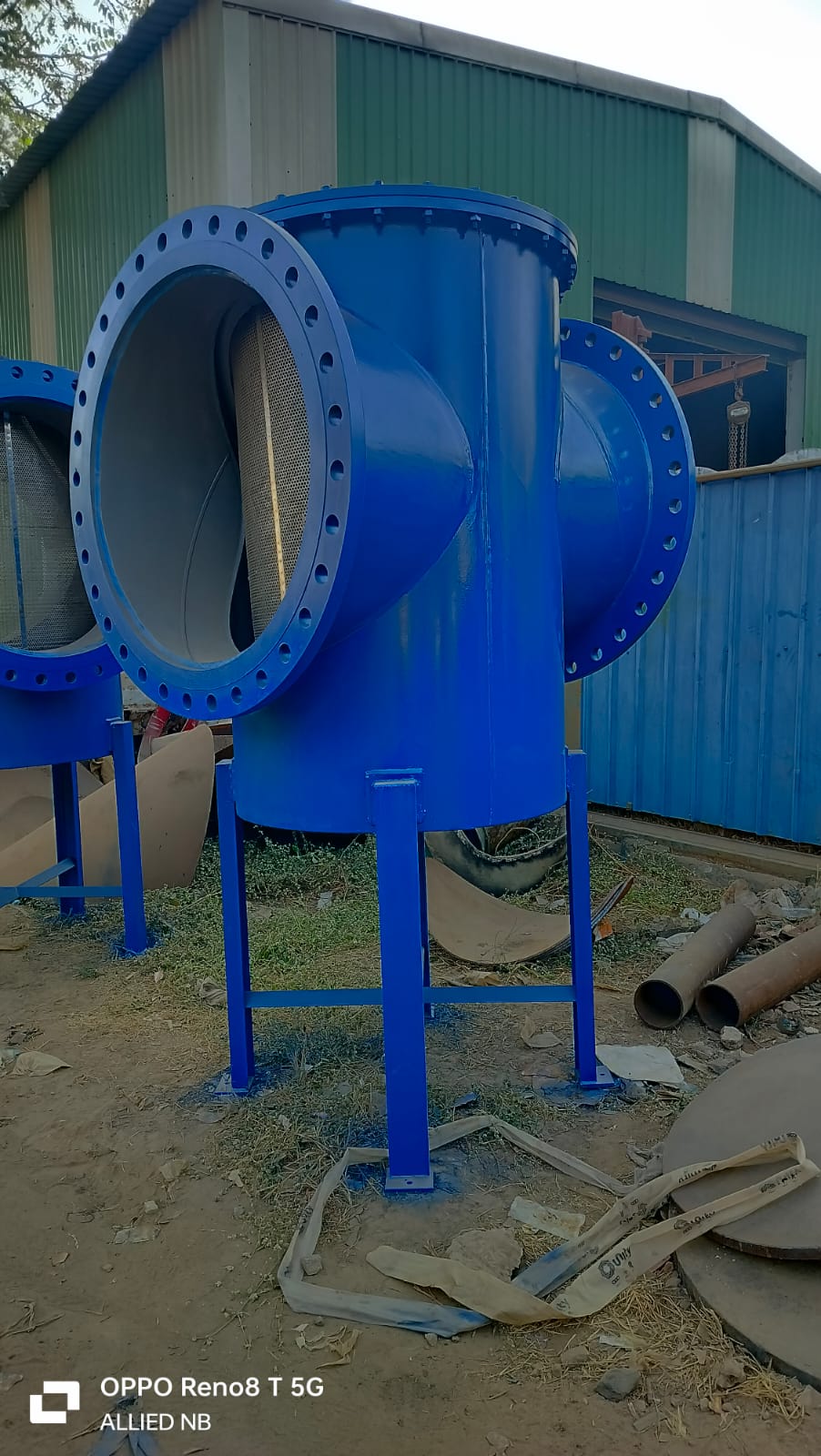

Basket Type Strainer

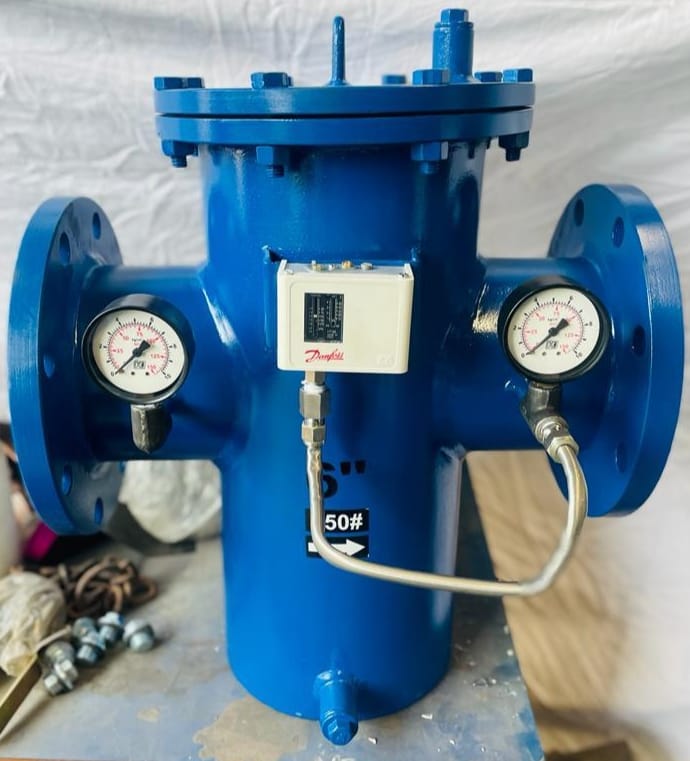

Allied Industrial Valve provides Pot type Strainers, which are extensively utilized in Filter plants. These Filters are custom-fabricated to meet specific customer requirements, such as 20 mesh, 40 mesh, 60 mesh, 80 mesh, single filter element, and double filter element. They offer a broad filtration area and are typically positioned near pumps within industries. The strainer element can be easily replaced by opening the top. Additionally, the pot strainer can be equipped with a pressure gauge to measure the inlet and outlet pressures. The basket/bucket strainer has a longer lifespan compared to the y strainer.

Description

Allied’s STRAINER CAST STEEL POT TYPE BOLTED COVER

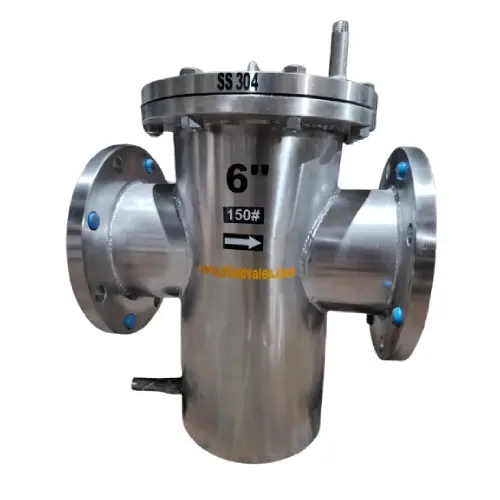

BODY/COVER : ASTM A 216 GR. WCB/SS 304 /SS 316 /SS 304L/SS 316L
SCREEN : SS 304 /SS 316 /SS 304L/SS 316L
MFG STD : ALLIED
INSP & TEST STD : ALLIED
ENDS : FLANGED TO BS 10 TABLE “E”/150#/300# RF
HYD-TEST PRESS: BODY : 425 Psig (30 Kg/Cm2) FOR WCB
SIZE RANGE : 40 NB TO 600 NB (1 ½” TO 24″)
Hydraulic Test Pressure
Body Seat
225 PSIG 150 PSIG
Mfg.Design As per Mfg. Std.
End Connection F/E Drill as per ANSI B 16.5 150#
Face to Face As per Mfg. Std.
