Swing Check Valve
Product Catalogue

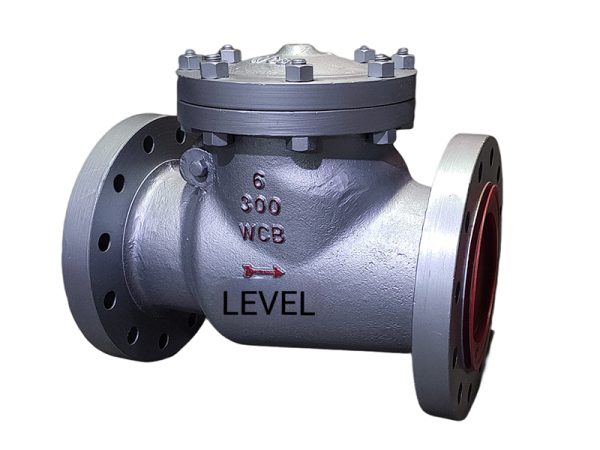

Allied Valves India is a Leading Manufacturer and Supplier of Swing Check Valve and this type of Swing Check Valve is for just about every conceivable application. We used CI, CS, SS 304, SS316, SS 304L, SS316L, WC6, WC9 as body & cover material, available in the flanged end ASME 16.5 connections.
Description
PRODUCT DESCRIPTION |
|
| BODY & COVER | CAST IRON|CAST STEEL | SS 304 | SS 316 | SS 304L | SS 316L | WC6 |WC9 |
| TRIMS | 13 CR | 18 CR 8 NI |
| MFG STD | BS 1868 |
| TEST STD | BS 6755 |
| END CONNECTION | FLANGED END TO ASME B 16.5 |
| HYD TEST PRESSURE | BODY: 425 PSIG (30 KG/CM2) SEAT: 300 PSIG (21 KG/CM2) |
| SIZE RANGE | 25MM TO 600 MM |
| TYPE | “SWING” TYPE |
| CLASS | PN 10 | PN 16 | ASA 150# | 300# | 600# |
MATERIAL DETAIL |
|||||||
| PART NO. | PART NAME | CAST IRON | WCB | DUCTILE IRON | CF8 | CF8M | |
| 01 | BODY | IS 210 GR FG 200 | A 216 GR WCB | GGG 40 | A 351 CF8 | A 351 CF8M | |
| 02 | COVER | IS 210 GR FG 200 | A 216 GR WCB | GGG 40 | A 351 CF8 | A 351 CF8M | |
| 03 | DISC | ASTM A 216 Gr. WCB + 13% Cr. Facing | |||||
| 04 | SEAT RING | ASTM A 217 GR CA 15 | ASTM A 217 GR CA 15 | ASTM A 217 GR CA 15 | ASTM A 351 GR CF8 | ASTM A 351 GR CF8M | |
| 05 | HINGE PIN | AISI 410(13% Cr.) / S.S. 304 / S.S. 316 | |||||
| 06 | DISC HINGE | ASTM A 216 Gr. WCB | ASTM A 351 Gr. CF8 / CF8M | ||||
| 07 | COVER GASKET | S.S.304 / S.S.316 SPIRAL WOUND GASKET WITH GRAPHOIL FILLER | PTFE | ||||
| 08 | COVER STUDS & NUTS | ASTM A 193 Gr. B7 / ASTM A 194 Gr. 2H | A 193 B16,A194 Gr.4/7 | ||||
