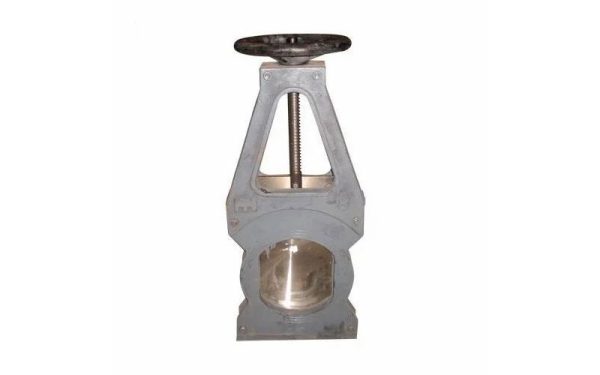

Pulp Valve
Product Catalogue
SPECIAL FEATURES
- The Pulp Valve is a BI-DIRECTIONAL wafer type Valve Designed As per MSS-SP-81 for Industrial Service Applications.
- The Design of the Body & Seat Assures Non-Clogging Shut Off on Suspended Solids in Industries Such as:-
- Pulp and Paper
- Power Plants
- Mining
- Waste Water Treatment Plants
- Chemical Plants
Description
| BODY | CAST IRON I CAST STEEL | SS 304 | SS 316 | SS 304L | SS 316L | WC6 |WC9 |
| KNIFE PLATE | AISI 410 | AISI 304 | AISI 316 | SS 304L | SS 316L |
| SEAT RING | SS 304 | SS 316 | SS 304L | SS 316L |
| MFG STD | STD MSS SP 81 |
| TEST STD | STD MSS SP 81 |
| END CONNECTION | WAFER LUGGED | WAFER TYPE |
| HYD TEST PRESSURE BODY | 135 PSIG (9 KG/CM2) SEAT: 90 PSIG (6 KG/CM2) |
| SIZE RANGE | 25MM TO 600 MM |
| OPERATION | MANUAL | GEAR |
| TYPE | BI-DIRECTIONAL |
