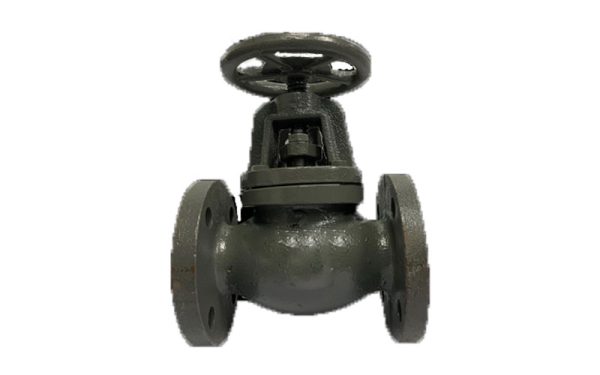

Forge Steel Globe Valve 150#
Product Catalogue
Description
| END CONNECTIONS: | 150#/300#/600# FLANGED END |
| FLANGETO FLANGE DISTANCE | ANSI B 16.5/ ANSI B 16.10 |
| BODY | FORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11 |
| SEAT | AISI 410/AISI 304/AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE MATERIAL AS PER REQUIREMENTS |
| VALVE | AISI 410/AISI 304/AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE MATERIAL,AS PER REQUIREMENTS |
| GASKET | SPIRAL WOUND SS 304 WITH CAF FILLER/ COMPITIBLE MATERIAL AS PER REQUIREMENTS |
| BODY BOLTS / NUTS | ASTM A 193 GR. B7 ASTM A 194 GR. 2H |
| GLAND PACKING | ASBESTOS GRAPHITED WITH INCONEL WIRE |
| GLAND BUSH | SS,410 /AISI 304 /AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE,MATERIAL REQUIRED AS PER REQUIREMENTS |
| GLAND PLATE | SS,410 / AISI 304 /AISI 316/AISI 410/AISI 304L/AISI 316L/ COMPITIBLE,MATERIAL REQUIRED AS PER REQUIREMENTS |
| BONNET | FORGED A 105, FORGED A 182 (F 304), FORGED A 182 (F 316), FORGED A 182 (F 304L), FORGED A 182 (F 316L), FORGED A 182 F22 /FORGED A 182 F11 |
| STEM | AISI 410/AISI 316/AISI 316 COMPITIBLE MATERIAL REQUIRED AS PER REQUIREMENTS |
| YOKE NUT | AISI,304/AISI 316/EN 19 COMPITIBLE, MATERIAL AS PER REQUIREMENTS |
| HAND WHEEL | MALLEABLE IRON/C.S./STAINLESS STEEL |
| HAND, WHEEL NUT | CARBON STEEL/STAINLESS STEEL |
| EYE BOLT/NUT | CARBON STEEL/STAINLESS STEEL |
| HYD –TEST PRESSURE : | FOR 150# -HYDRAULIC TET PRESSURE:BODY:425PSIG ( 30 KG/CM2),SEAT :300 PSIG( 21 KG /CM2),FOR 300# -HYDRAULIC TET PRESSURE,:,BODY : 1100 PSIG (77 Kg/Cm2), SEAT,: 800 PSIG (56 Kg/Cm2),FOR ASA 600# HYD-TEST PRESS. :,BODY : 2175,Psig(153 Kg/Cm2),:,SEAT,: 1600 Psig,(112 Kg/Cm2) |
| SIZE RANGE | 6 NB TO 50NB (1/4″ TO 2″) |
| ACCESSORIES | MANUAL GEARBOX OPERATION/ MOTORIZED OPERATION |
